Saft LS14250CNR Battery: Reliable Power for Your Applications
The Saft LS14250CNR is a 3.6V primary lithium-thionyl chloride (Li-SOCl2) half AA-sized bobbin cell designed to meet the demands of modern battery pack integration. With its high energy density and outstanding performance characteristics, it’s the go-to choice for a variety of critical applications.
Key Features and Benefits:
-
Stable Voltage Response: Delivers consistent high voltage output throughout most of its lifespan.
-
Wide Operating Temperature Range: Performs reliably in extreme conditions from -60°C to +85°C, making it ideal for diverse environments.
-
Low Self-Discharge Rate: Retains charge for extended periods, with less than 1% self-discharge per year at +20°C, ensuring reliability after long-term storage.
-
Corrosion Resistance: Built with a stainless steel container and end caps for superior durability against atmospheric corrosion.
-
Compact Integration: Designed for easy incorporation into compact systems.
Safety and Compliance:
The LS14250CNR is engineered for safety and adheres to rigorous standards, including:
- IEC 60086-4 and IEC 60079-11 (intrinsic safety, class T4 assignment).
- UL Component Recognition.
- Non-restricted for transport under UN Recommendations for dangerous goods.
Manufacturing Excellence:
Proudly manufactured in France, the UK, and China, this battery meets global quality standards.
Applications:
Perfect for use in utility metering, automatic meter reading, alarms and security systems, tollgate systems, memory backup, computer real-time clocks, tracking devices, automotive electronics, and professional-grade electronics.
Technical Specifications:
-
Nominal Capacity: 1.20 Ah (at 1 mA, +20°C, 2.0V cut-off).
-
Nominal Voltage: 3.6 V (at 0.1 mA, +20°C).
-
Open Circuit Voltage: 3.67 V (at +20°C).
-
Nominal Energy: 4.32 Wh.
-
Pulse Capability: Up to 100 mA.
-
Maximum Continuous Current: 35 mA (higher currents possible with Saft consultation).
-
Operating Temperature Range: -60°C to +85°C (-76°F to +185°F).
Storage Recommendations:
For optimal performance, store the LS14250CNR at temperatures up to +30°C (+86°F). Note that operation at elevated temperatures may impact capacity and initial voltage readings during pulses. For extreme conditions, consult Saft for tailored solutions.
Battery Pack Integration:

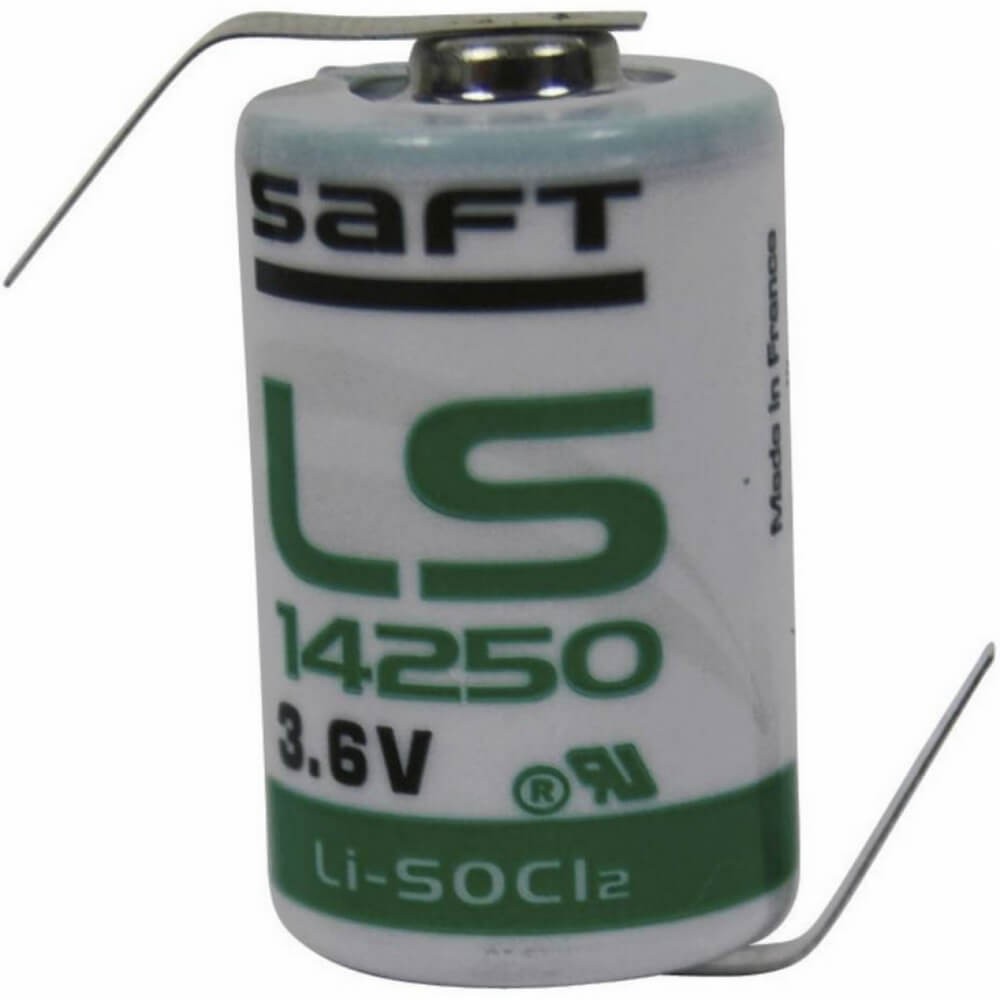

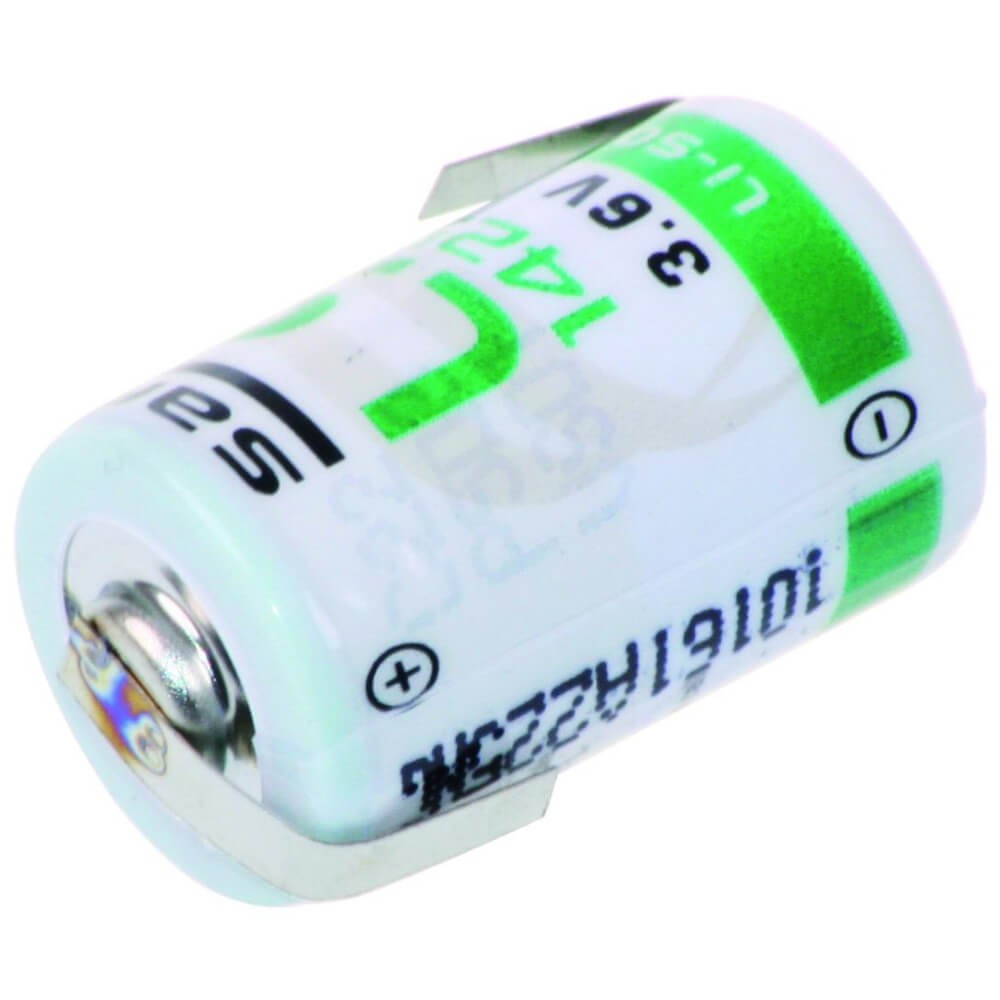

Featuring welded tabs on opposite ends, the LS14250CNR is specifically designed for reliable and secure battery pack assembly.
Choose the Saft LS14250CNR for unmatched performance, reliability, and safety across a broad spectrum of applications.
