Introducing the Saft LSH20FL9, a primary lithium battery that guarantees stable voltage response throughout most of the lifetime of your application. This battery is designed with a high drain/pulse capability and has a wide operating temperature range of -60°C to +85°C, making it perfect for use in harsh environments.

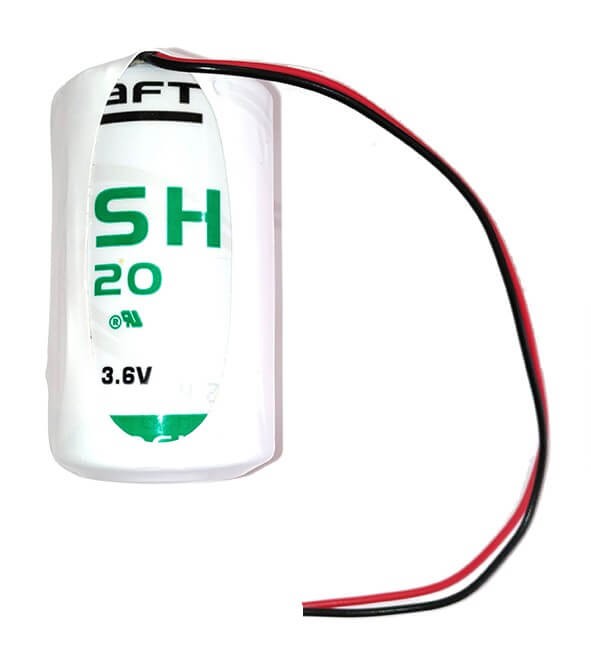

One of the unique features of the Saft LSH20FL9 is its 9 inch flyleads installed on the positive and negative terminals of the battery in the same direction. These leads are installed by our ISO certified workshop, making it easy to assemble and connect to the battery. With this feature, you can easily integrate this battery into compact systems without any hassle.
Compared to other Saft batteries, such as the LS33600, the LSH20FL9 is designed with a D-size spiral cell, which makes it more powerful and efficient. It also has a nominal capacity of 13.0 Ah, which makes it a suitable choice for military applications, alarms and security systems, beacons and emergency location transmitters, GPS, metering systems, sonobuoys, tracking systems, and GSM communication.
The Saft LSH20FL9 has a built-in safety vent and a non-flammable electrolyte, ensuring the safety of the user during its operation. It also has a low self-discharge rate of less than 3% after 1 year of storage at +20°C. With its hermetic glass-to-metal sealing and stainless steel container, this battery is designed to last long and withstand extreme conditions.
The battery has a finish with a 5 A fuse and is restricted for transport (Class 9), complying with Underwriters Laboratories (UL) Component Recognition (File Number MH 12609). It also has a NATO stock number of 6135 14 440 1213, making it a trusted and reliable battery for various applications.
The Saft LSH20FL9 has a pulse capability of up to 4000 mA, with a maximum recommended continuous current of 1800 mA. It has a typical weight of 100 g (3.5 oz), and its Li metal content is approximately 3.8 g. The battery's physical characteristics include a diameter (max) of 33.4 mm (1.32 in), a height (max) of 61.6 mm (2.42 in), and it is available in various termination suffixes, including CN, CNR radial tabs, CNA (AX) axial leads, and FL flying leads.
In summary, the Saft LSH20FL9 is a powerful and reliable primary lithium battery that offers high power, stability, and safety. Its easy integration into compact systems, 9 inch flyleads, and other unique features make it the ideal choice for a wide range of applications.
