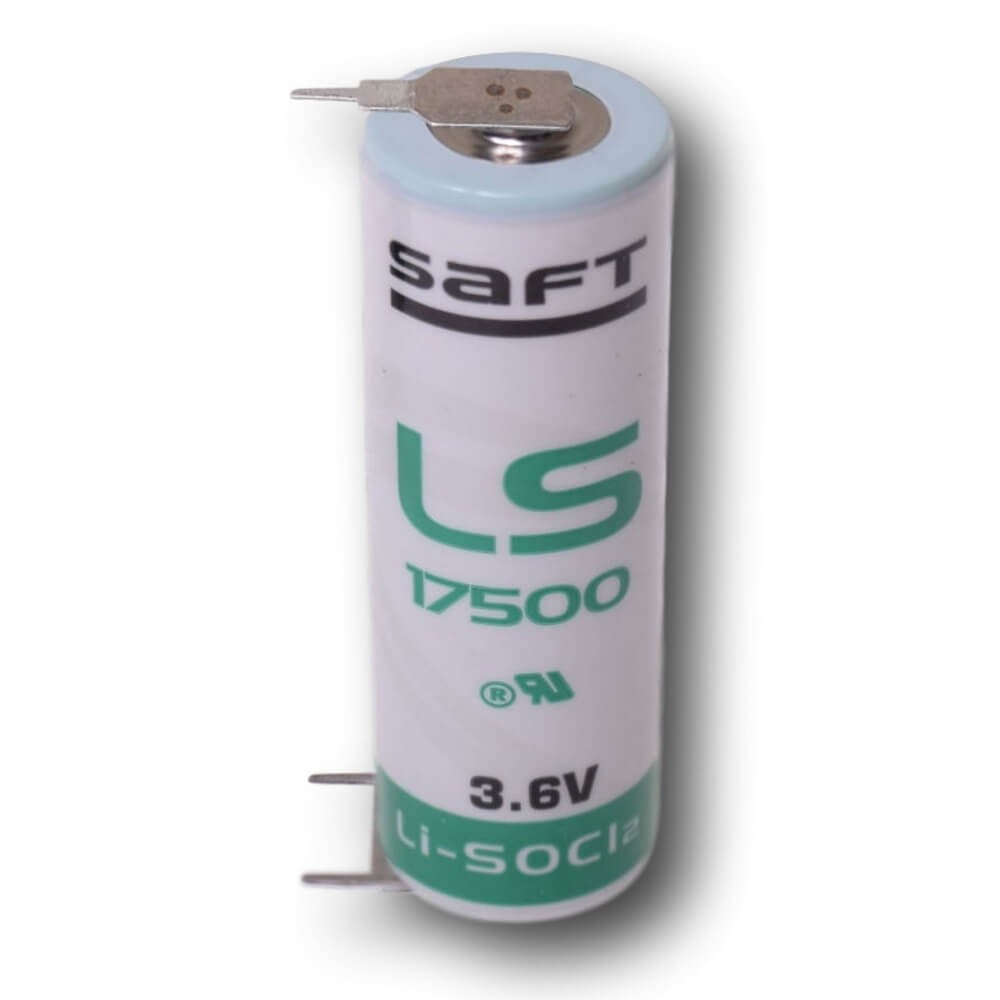

Saft ls17500, A Size battery 3.6V, 3600mah with pc pins one pin on positive terminal & two pins on negative terminal


Price:
Sale price$21.99 CAD

Shipping calculated at checkout

Other Terminations

---------------------------------------------------------------------------------------
This product is in stock ready for shipment from our Burlington, Ontario warehouse.
---------------------------------------------------------------------------------------

There is a $25.00 Minimum order amount please add more items to your cart if under this amount.

Product Attachments

Saft LS17500 Data Catalogue
Saft LS17500 Data CatalogueCombined document containing the specifications, MSDS, Atex certificate, and the UN test certificate(4.21 MB)

Estimate shipping

Specifications

Saft LS17500 Specifications

Saft LS17500 Battery Specifications

Parameter Details
Battery Type Primary Lithium Thionyl Chloride (Li-SOCl₂)
Nominal Voltage 3.6 V
Nominal Capacity 3.6 Ah
Nominal Energy 12.96 Wh
Maximum Continuous Current 100 mA
Pulse Capability Up to 250 mA
Operating Temperature Range -60°C to +85°C
Dimensions (Diameter × Height) 17.16 mm × 50.77 mm
Typical Weight 23 g
Self-Discharge Rate Less than 1% per year (at +20°C)
Certifications UL 1642, IEC 60086-4, IEC 60079-11
Applications Utility Metering, IoT, Alarms, Medical Devices, Tracking Systems

Description

Saft ls17500, A Size battery 3.6V, 3600mah with pc pins one pin on positive terminal & two pins on negative terminal

Elevate your applications with the Saft LS17500 A-Size 3.6V Lithium Thionyl Chloride (Li-SOCl₂) battery—engineered for unmatched energy efficiency and reliability. This advanced primary cell delivers a high capacity of 3.6Ah, providing sustained performance over long-term use. Designed with PC pins for secure installation—featuring one pin on the positive terminal and two on the negative—it ensures easy integration into your projects.

Uncompromised Performance

With a nominal voltage of 3.6V and a robust energy density of 1139 Wh/L, the LS17500 delivers exceptional stability, even under demanding conditions. It is perfect for utility metering, IoT devices, medical equipment, tracking systems, alarms, and security applications. The low self-discharge rate of less than 1% annually ensures a prolonged shelf life, enabling extended operating periods from 5 to 20+ years.

Built for Extreme Environments

Operating seamlessly across a broad temperature range of -60°C to +85°C, the LS17500 is the go-to solution for harsh environments. Its corrosion-resistant stainless steel canister, glass-to-metal hermetic seal, and bobbin construction enhance durability and reliability in challenging conditions.

Key Features at a Glance

  • Superior Safety Compliance: Certified for UL 1642, IEC 60086-4, ATEX IEC 60079-11 (T3/T4), UN 3090/3091, and more.
  • Eco-Friendly Standards: RoHS and REACH compliant, promoting environmental safety.
  • Innovative Design: Non-flammable electrolyte with low magnetic signature, ideal for low electromagnetic interference applications.
  • Exceptional Build Quality: Manufactured in Saft’s ISO 9001-certified facilities in France, China, and the UK.

Why Choose the LS17500?

Saft is a pioneer in energy solutions, bringing over a century of expertise to every product. Whether powering remote IoT sensors or critical medical devices, the LS17500 delivers sustained performance, reliability, and safety for your high-tech needs.

Contact Us

Looking for a battery solution tailored to your application? Our customer service team is ready to assist. Explore the excellence of Saft’s LS17500 today and discover the power of performance.
