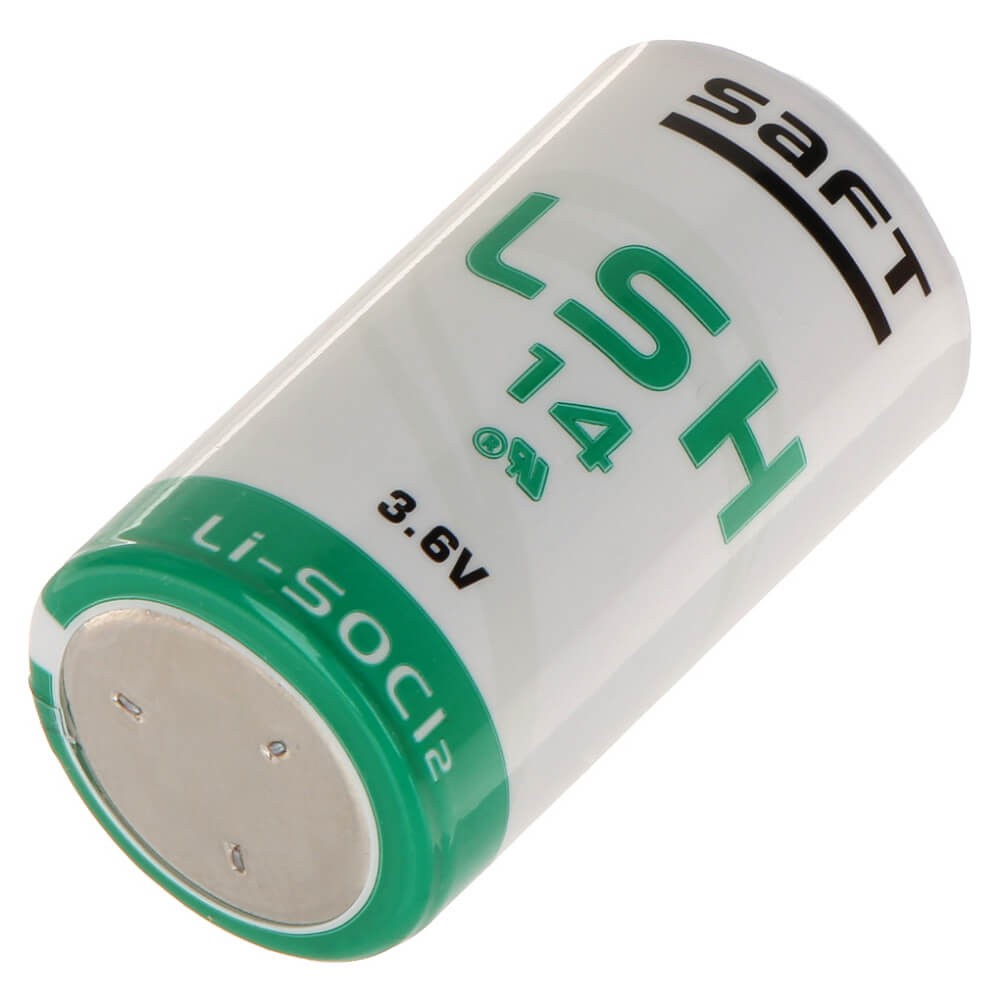

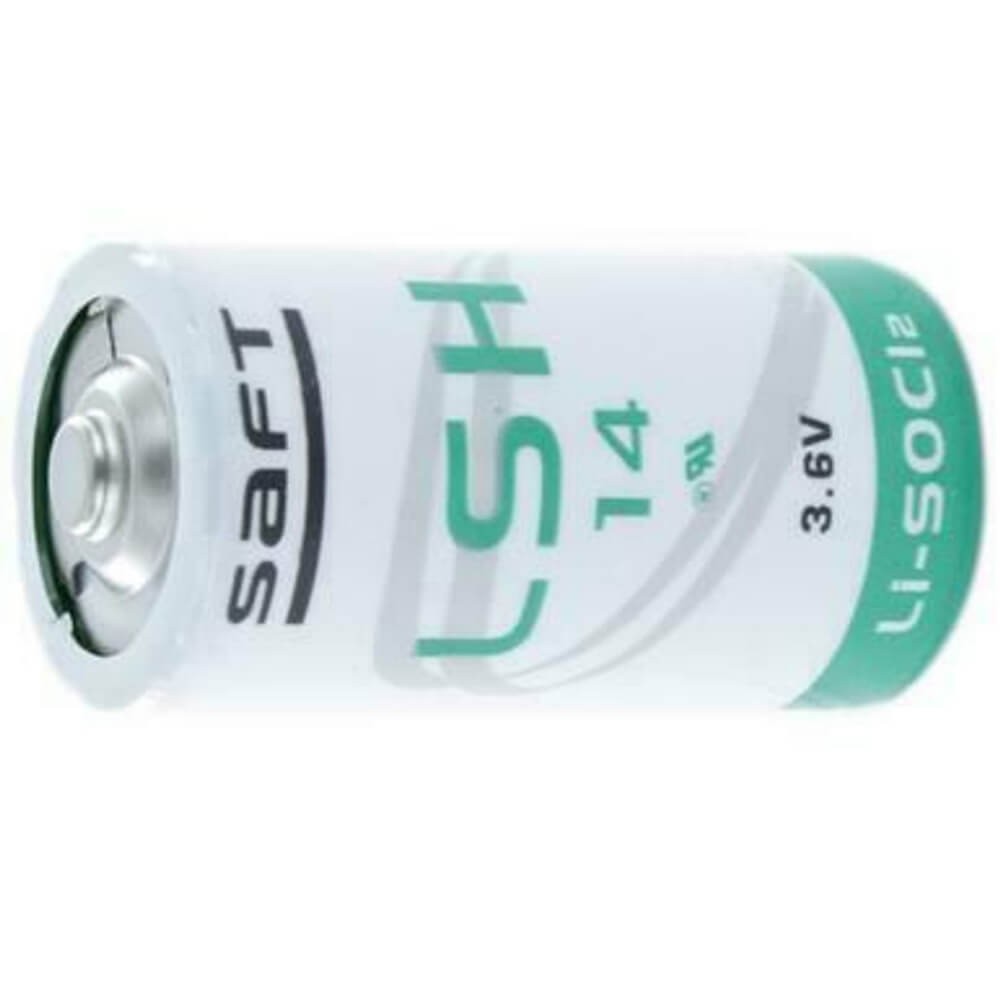

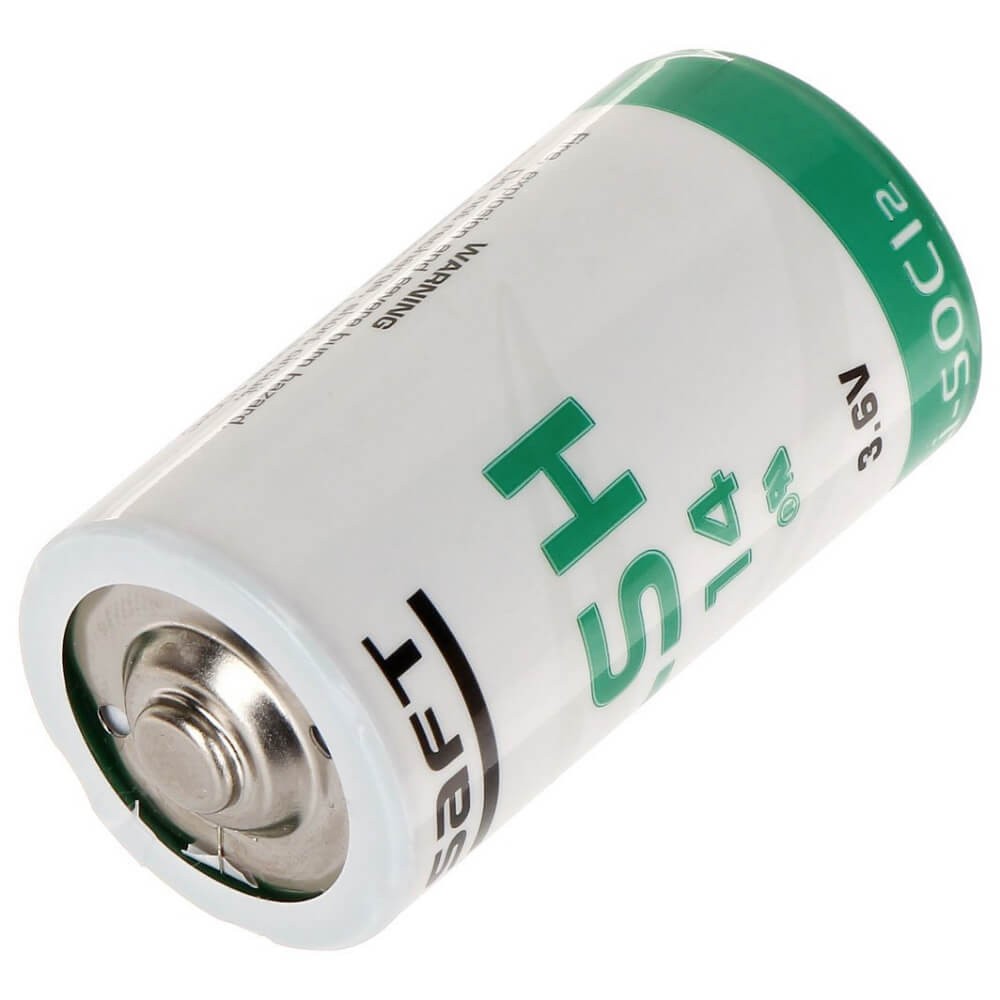

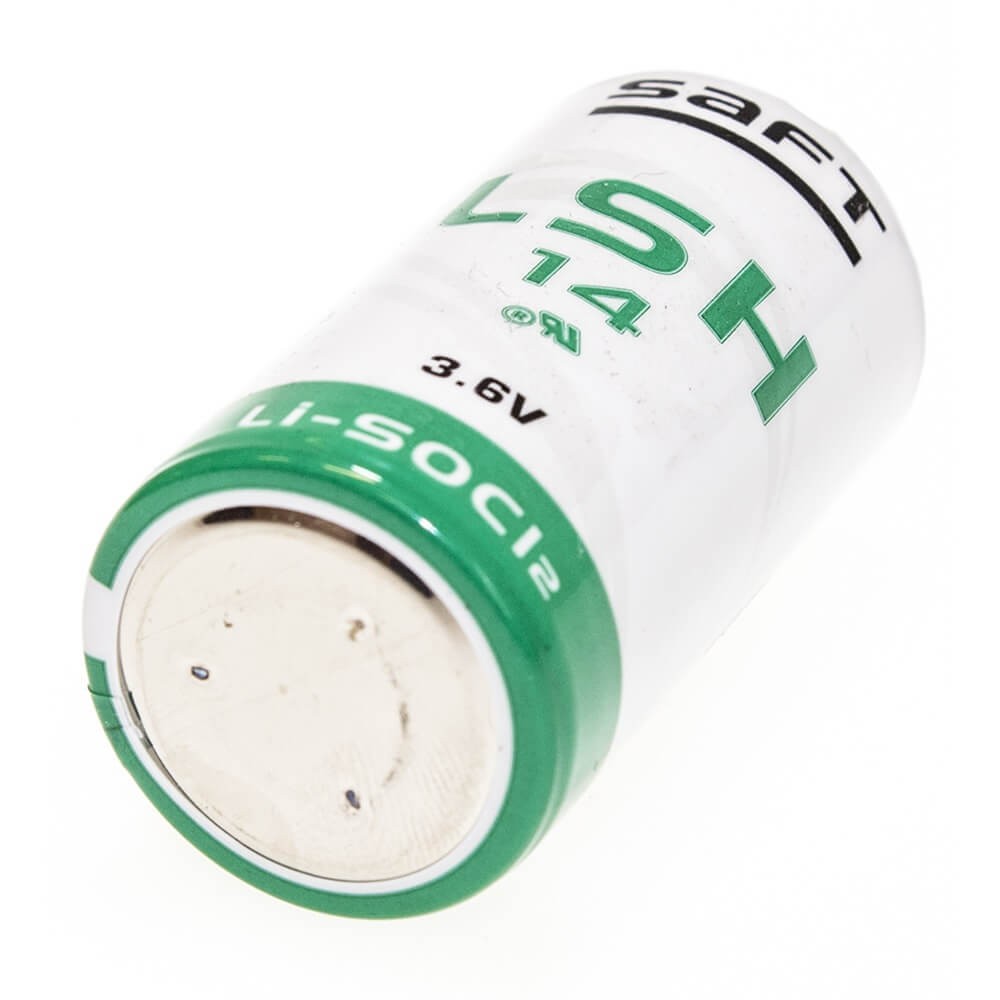

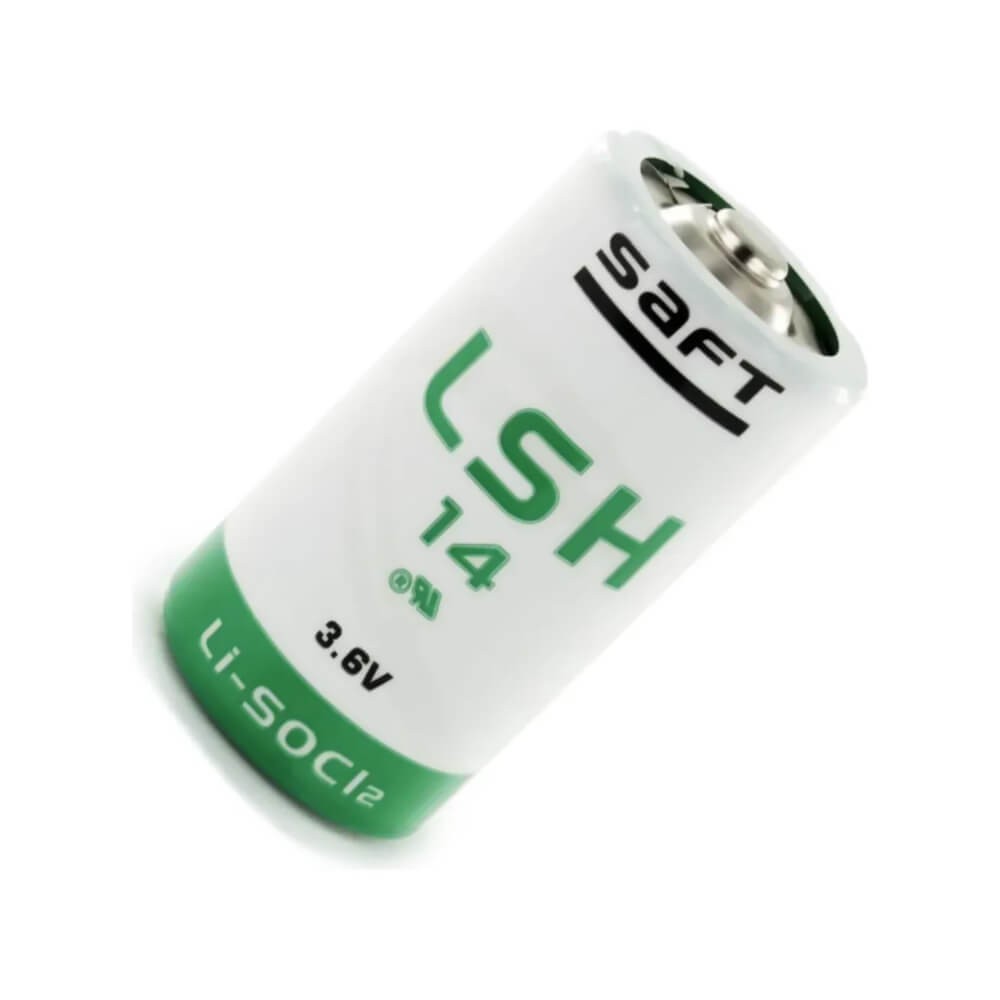

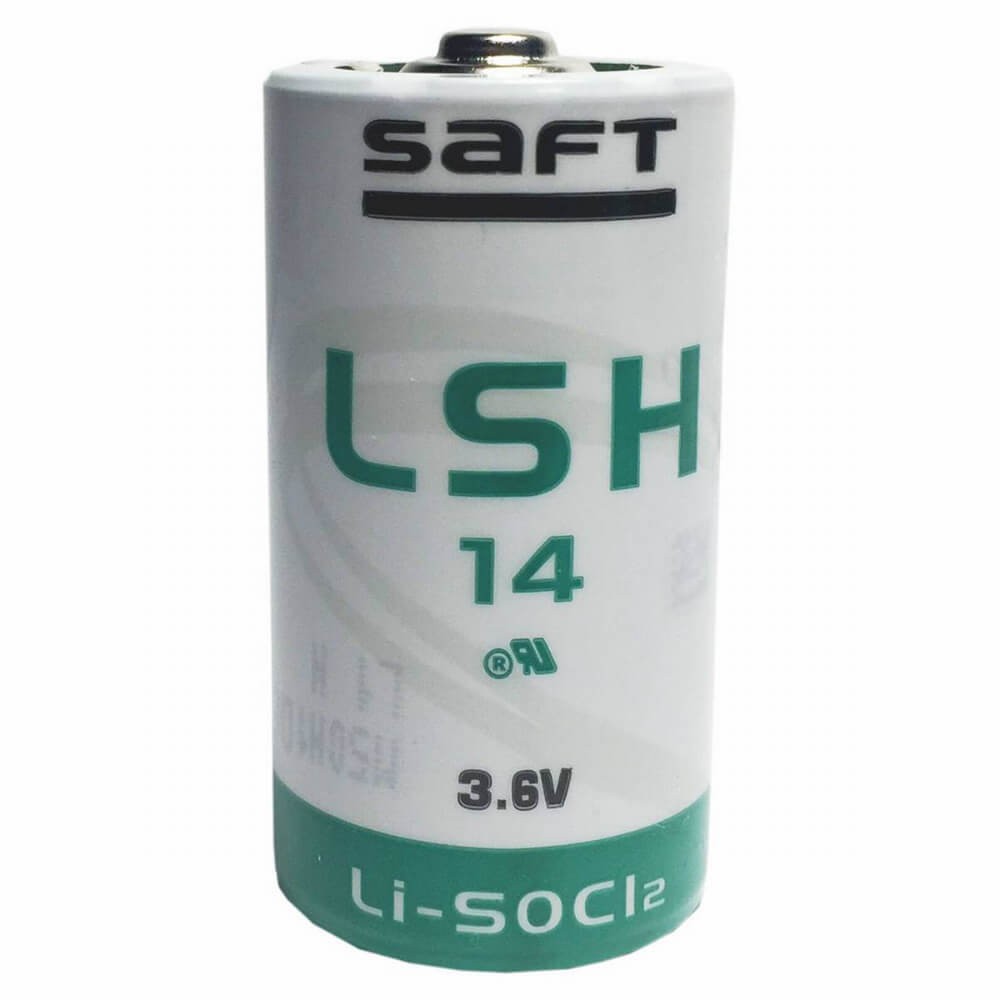

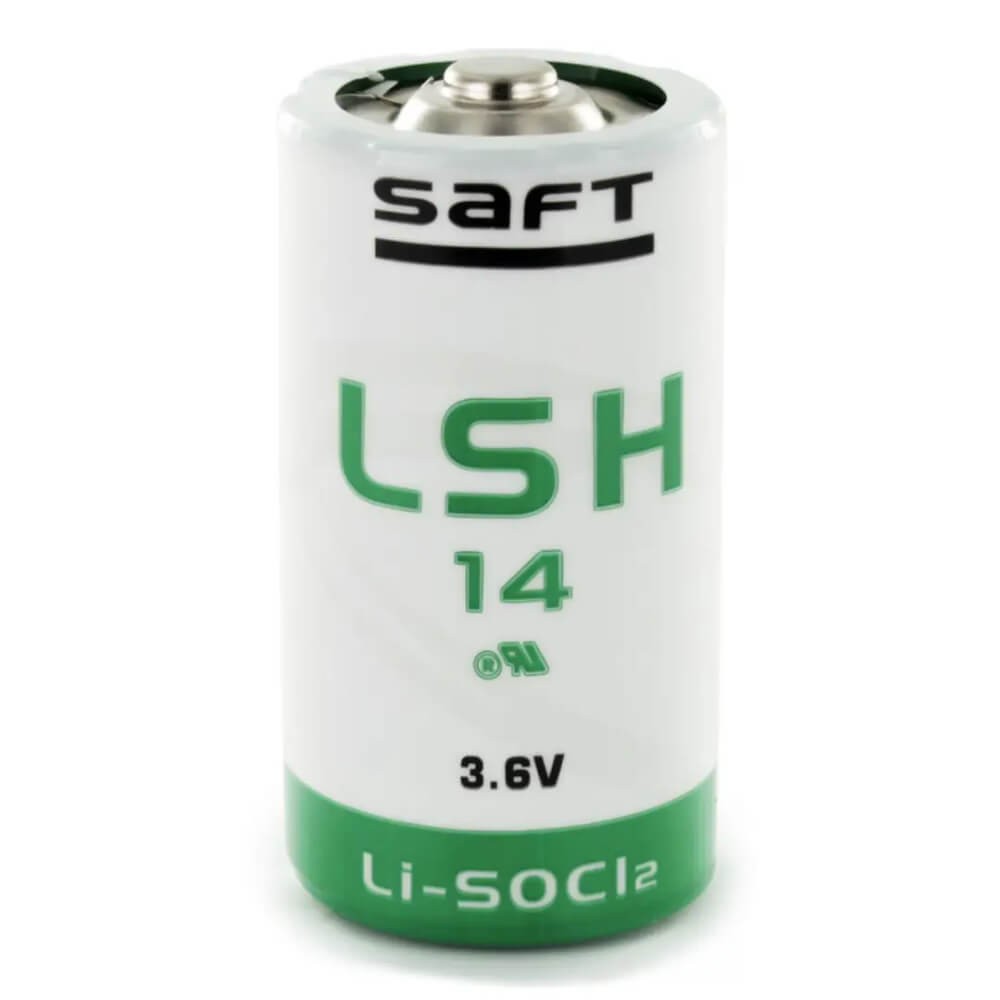

Saft lsh14,C Size battery 3.6V, 5800mah

The Saft LSH14 is a high-performance C-size lithium-thionyl chloride (Li-SOCl2) battery designed for demanding applications where reliability, safety, and longevity are critical. This primary battery offers an outstanding combination of high power and a stable voltage response throughout its operational life, ensuring consistent performance in even the harshest environments.

Key Features:

• High Power Output: Delivers a nominal voltage of 3.6V with an open-circuit voltage of 3.67V. Its pulse capability reaches up to 2000mA, making it perfect for high-drain and pulse applications.
• Wide Operating Temperature Range: Performs reliably in extreme conditions, from a frigid -60°C to a scorching +85°C, making it suitable for use in arctic or desert environments.
• Exceptional Safety Measures: Built-in safety vent and a 5A fuse prevent overpressure and overcurrent, while a non-flammable electrolyte enhances operational safety.
• Durable Construction: Encased in a stainless steel container with hermetic glass-to-metal sealing, ensuring airtight integrity and resistance to harsh conditions.
• Low Self-Discharge: Retains over 97% of its capacity after one year of storage at +20°C, making it ideal for long-term applications.

Specifications:

• Capacity: 5.8Ah (nominal) at 15mA with a 2.0V cut-off.
• Dimensions: Diameter: 26.0mm, Height: 50.4mm, Weight: 51g.
• Max Continuous Current: 1300mA to ensure safe operation without overheating.

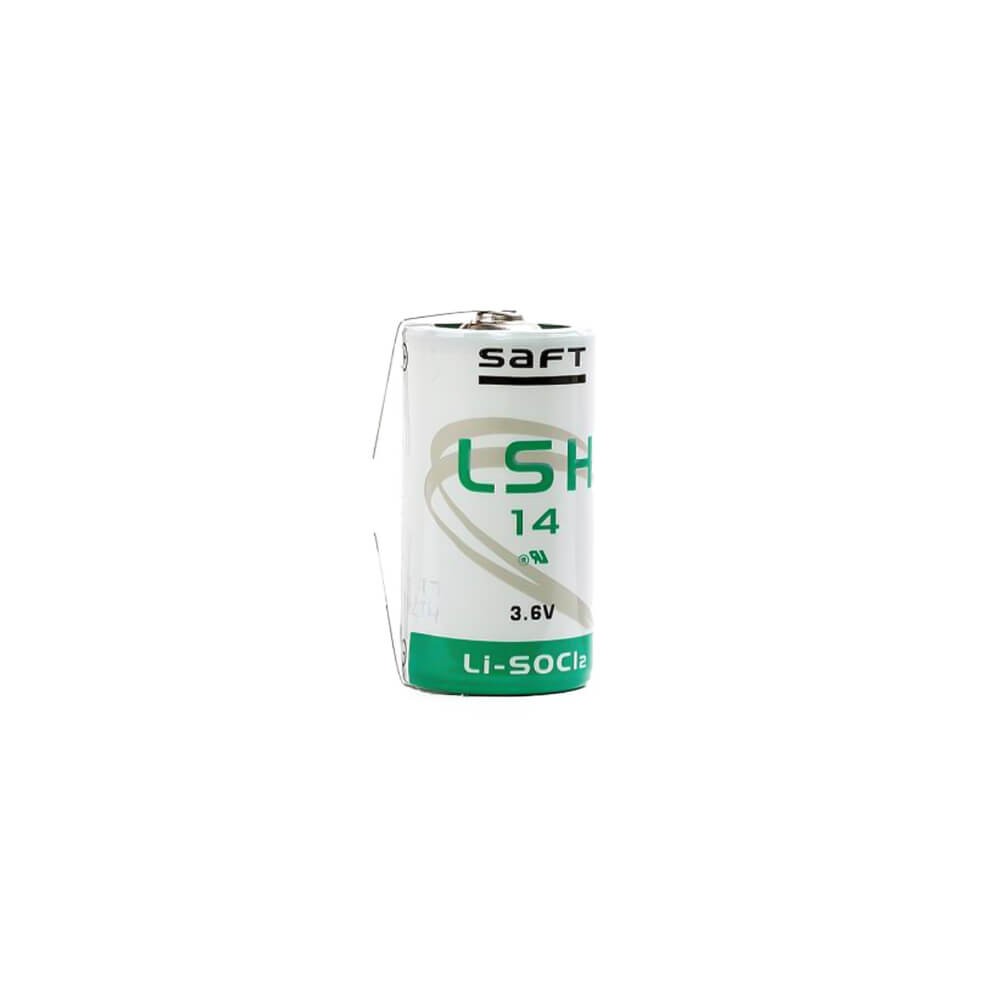

• Terminations: Available with CN, CNR radial tabs, 3PF RP radial pins, CNA (AX) axial leads, or FL flying leads for versatile connectivity.

Applications:

The Saft LSH14 is engineered to excel in diverse and mission-critical fields, such as:

• Radiocommunication and military systems.
• Alarms and security devices.
• Beacons and emergency location transmitters.
• GPS devices, automotive telematics, and metering systems.
• Sonobuoys and pipeline inspection systems.

Performance Comparison:

Compared to other Saft models like the LS26500, the LSH14 stands out with:

• A higher nominal capacity of 5.8Ah.
• Superior pulse capability (up to 2000mA).
• A wider operating temperature range (-60°C to +85°C).
• Compact size for easy integration into space-limited designs.

Certifications:

• NATO Stock Number: 6135-12-306-4125.
• Compliant with IEC 60086-4 and Underwriters Laboratories (UL) standards.
• Tested to meet UN Class 9 Dangerous Goods regulations.

Whether you’re powering a remote metering system or a military-grade device, the Saft LSH14 ensures uncompromising reliability and performance. Trust Saft for your most demanding energy needs.
