Modicon 484 Saft ls33600, D size battery 3.6V 17000mah


Price:
Sale price$45.99 CAD

Shipping calculated at checkout

---------------------------------------------------------------------------------------
This product is in stock ready for shipment from our Burlington, Ontario warehouse.
---------------------------------------------------------------------------------------

There is a $25.00 Minimum order amount please add more items to your cart if under this amount.

Product Attachments

Saft LS33600 Data Catalogue
Saft LS33600 Data CatalogueCombined document containing the specifications, MSDS, and the UN test certificate(4.4 MB)

Estimate shipping

Specifications

Saft LS33600 D-Size Battery Specifications

Saft LS33600 D-Size Battery Specifications

Parameter Value
Battery Type Lithium-Thionyl Chloride (Li-SOCl₂)
Nominal Voltage 3.6 V
Nominal Capacity 17,000 mAh
Max Continuous Current 250 mA
Max Pulse Discharge Rate 400 mA
Dimensions 33.4 mm (Diameter) x 61.6 mm (Height)
Weight 90 g
Operating Temperature -60°C to +85°C
Shelf Life 10+ years (low self-discharge)
Certification IEC 60079-11 (Intrinsic Safety), UN 38.3

Description

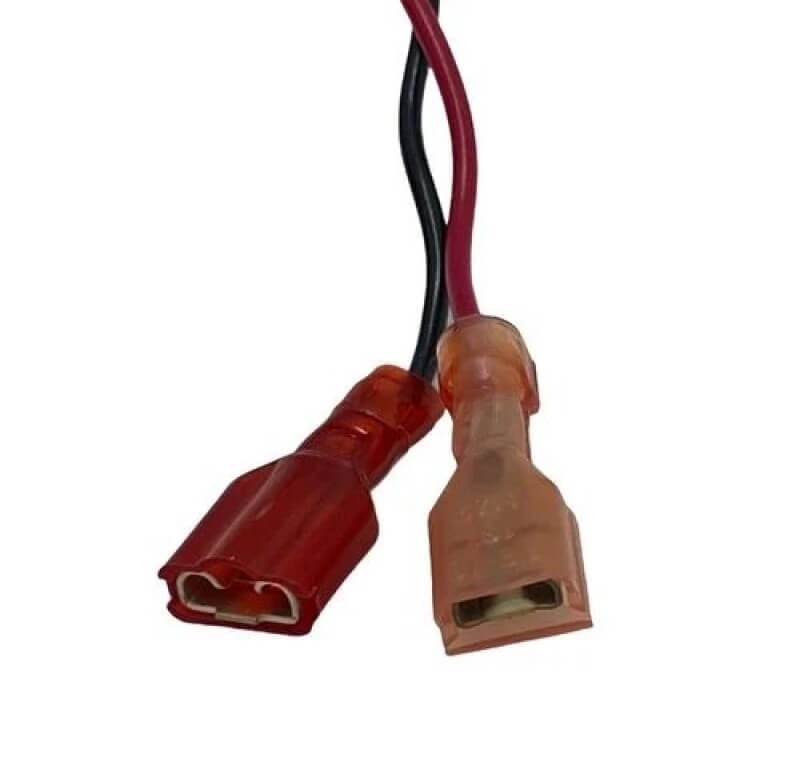

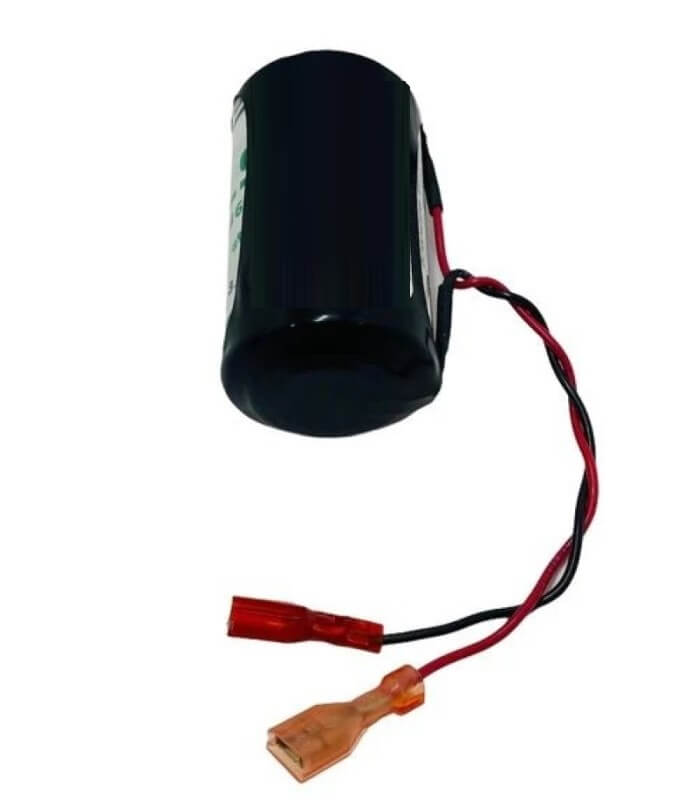

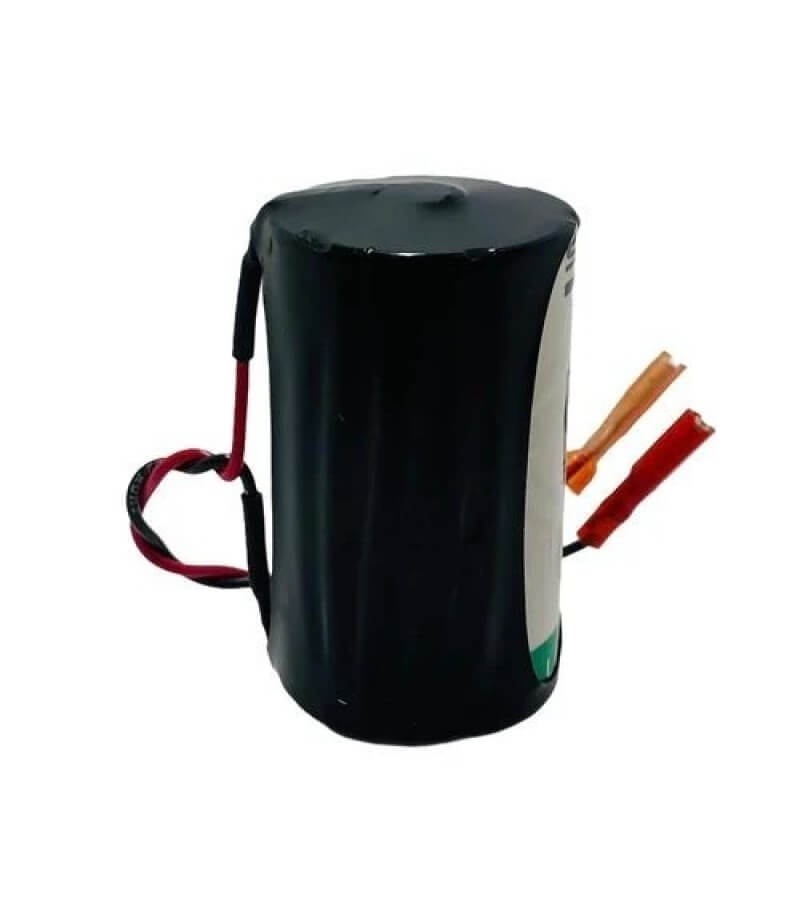

Introducing the Saft LS33600-B9500T, the Modicon 484 primary lithium-thionyl chloride battery, now enhanced with pre-installed fly leads on its positive and negative terminals by our ISO certified workshop. This feature simplifies assembly and connection to your application. Boasting exceptional performance, this battery operates flawlessly across a wide temperature range of -60°C to +85°C, rendering it suitable for even the harshest environments. It is further distinguished by its minimal self-discharge rate of less than 3% after a year of storage at +20°C, ensuring a prolonged shelf life.

The Saft LS33600-B9500T battery showcases a design incorporating a stainless steel container and hermetic glass-to-metal sealing, guaranteeing durability and immunity to corrosion. Additionally, it comes equipped with a built-in safety vent, ensuring compliance with IEC 86-4 and EN 50020 safety standards, as well as UL Component Recognition (File Number MH 12609). Designed in a D-size bobbin cell format, it maintains a nominal voltage of 3.6V and boasts a typical pulse capacity of up to 400mA, catering to a broad range of applications. It also sustains a continuous current of 250mA, allowing 50% of nominal capacity to be achieved at +20°C with a 2.0V cut off.

The LS33600-B9500T Modicon 484 replacement battery proves to be a fitting choice for utility metering, automatic meter readers, buoys, measuring equipment, industrial usage, professional electronics, and marine equipment. Beyond its remarkable performance, this battery also offers a low magnetic version upon request. With a diameter of 33.4mm and a height ranging from 60.2mm to 61.6mm based on the finish, the Saft LS33600-B9500T battery has an approximate weight of 90g (3.2oz) and contains about 4.5g of Li metal content. Place your trust in the reliability and enduring quality of the Saft Modicon 484 LS33600-B9500T primary lithium-thionyl chloride battery to meet your high-performance application requirements.
