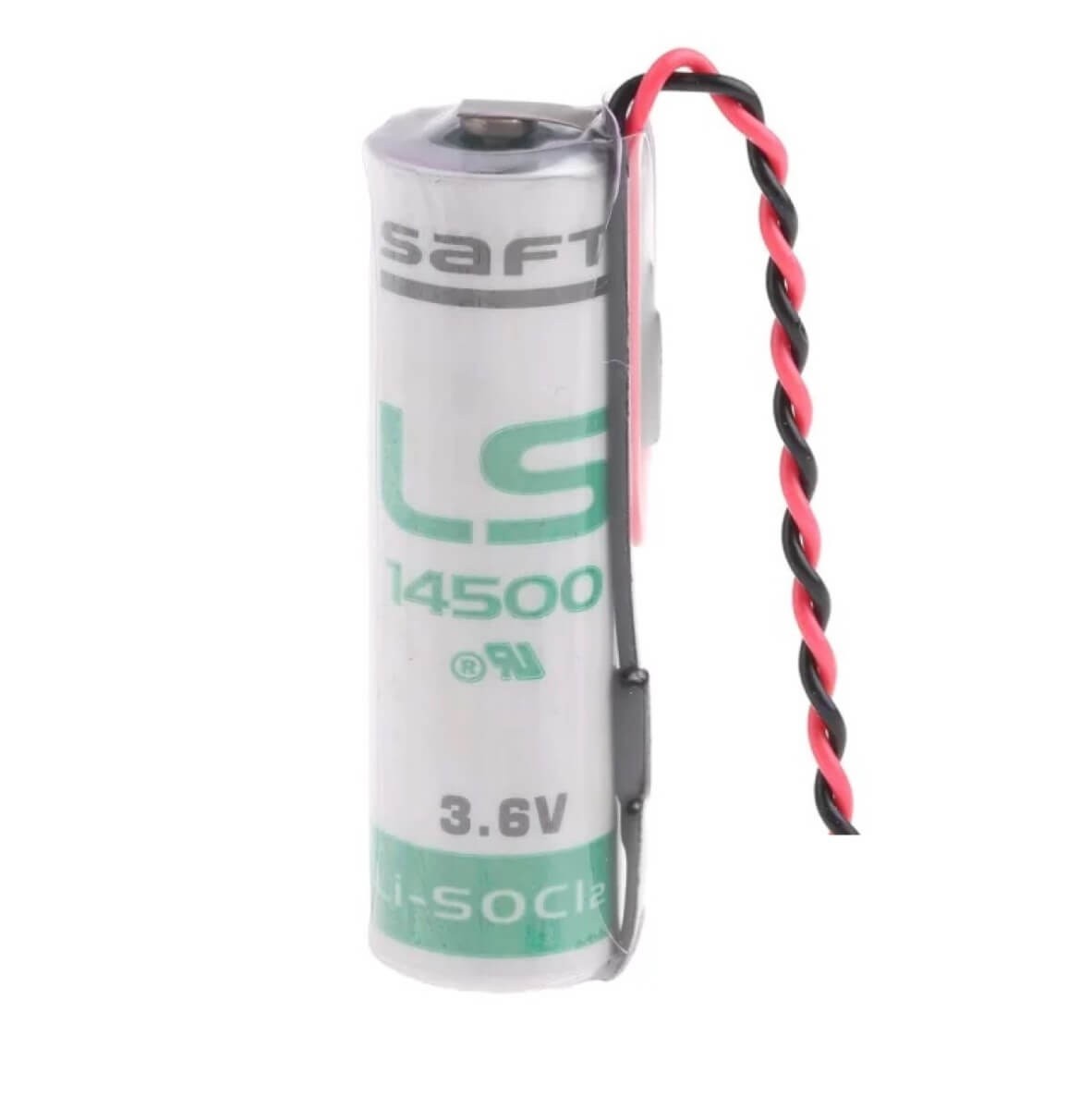

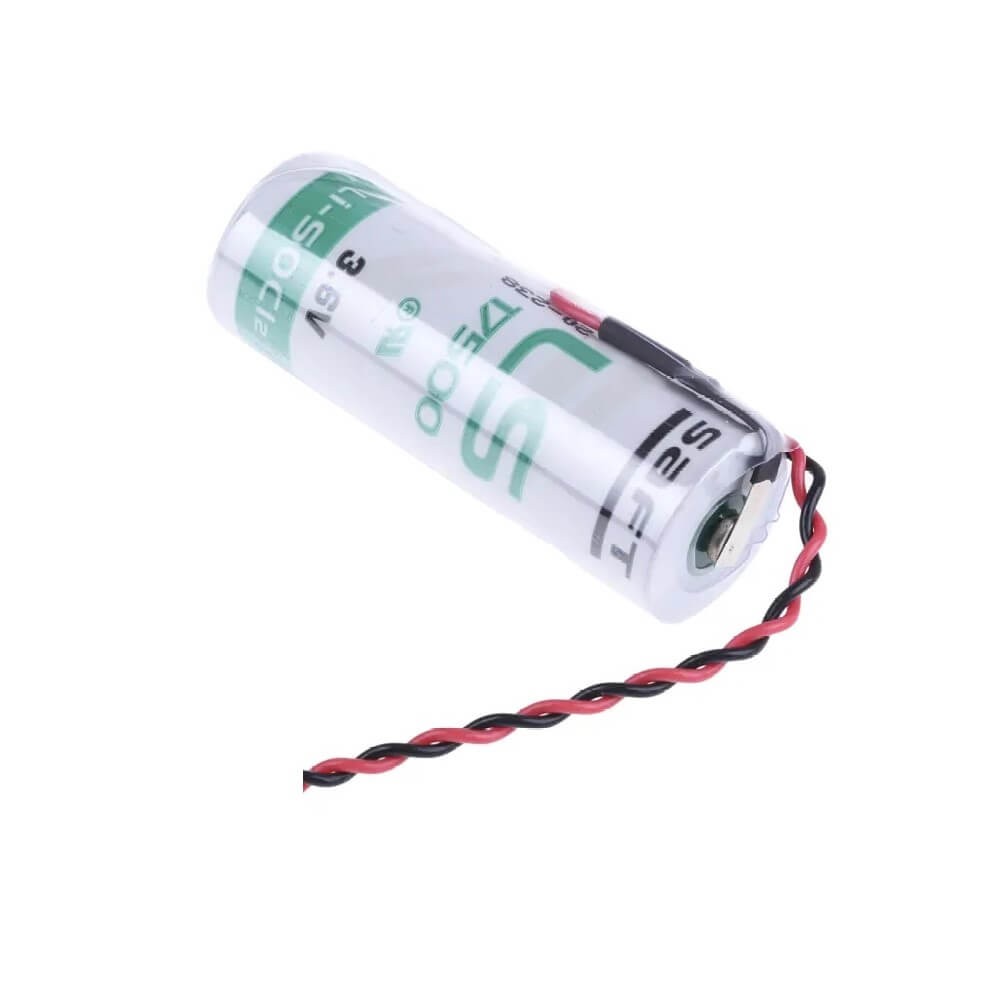

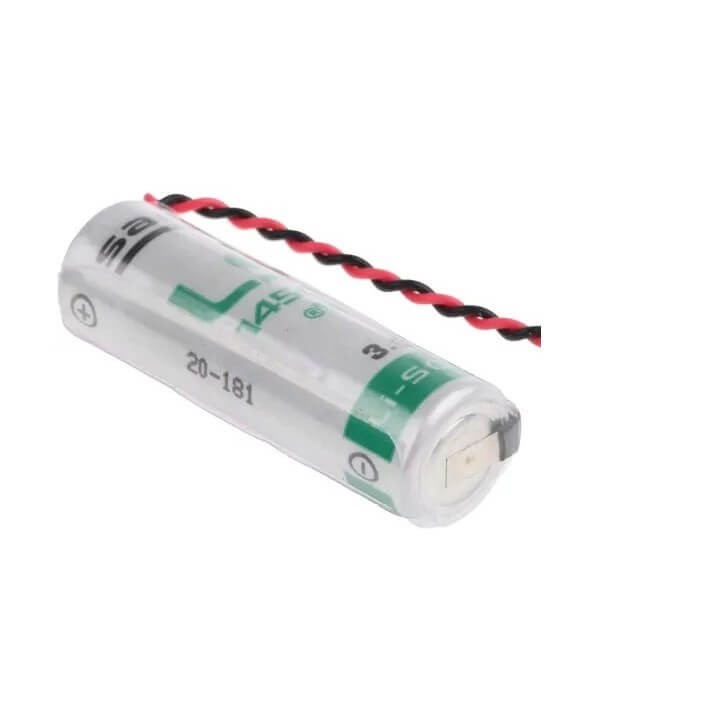

Saft ls14500, AA lithium battery 3.6V 2600mah with 3 inch flyleads


Price:
Sale price$17.99 CAD

Shipping calculated at checkout

You may also like

---------------------------------------------------------------------------------------
This product is in stock ready for shipment from our Burlington, Ontario warehouse.
---------------------------------------------------------------------------------------

There is a $25.00 Minimum order amount please add more items to your cart if under this amount.

Product Attachments

Estimate shipping

Specifications

Saft LS14500 AA Lithium Battery Specifications

Saft LS14500 AA Lithium Battery Specifications

Parameter Specification
Nominal Voltage 3.6 V
Nominal Capacity 2.6 Ah (2600mAh)
Maximum Continuous Current 50 mA
Pulse Capability 0.25 A
Operating Temperature Range -60°C to +85°C
Storage Temperature (Recommended) Up to +30°C
Diameter 14.55 mm
Height 50.3 mm
Weight 16.7 g
Self-Discharge Rate < 1% after 1 year at 20°C
Safety Standards IEC 60079-11, UL 1642
Applications Utility metering, alarms, tracking, IoT devices, medical and security equipment

Description

Here are the specifications for the Saft LS14500, LS-14500 Li-SOCI2 2600Mah With 3 Inch Flyleads primary lithium battery:

  • Nominal voltage: 3.6 volts
  • Capacity: 2600 mAh
  • Chemistry: Lithium-Thionyl Chloride (Li-SOCl2)
  • Size: AA (50.5mm x 14.5mm)
  • Operating temperature range: -60°C to +85°C
  • Shelf life: 10 years
  • Weight: 19 grams
  • Connector: With three Inch Flyleads

Some additional specifications include a high energy density of 950 Wh/l, a low self-discharge rate of less than 1% per year at 20°C, and a maximum continuous current of 100 mA. The Saft LS14500 is also designed to be highly reliable and safe, with features such as a hermetic glass-to-metal seal and a built-in safety vent to release gas during overheating or overcharging. The Saft LS14500 is a high-quality, long-lasting battery suitable for various industrial, medical, and other demanding applications.

Battery Part Numbers that the Saft LS-14500 will replace

See the product replaces tab.

Also used in the following applications:-

Suitable For Plc Allen Bradley 1772-LR, Plc Allen Bradley 1772-ls, Plc Siemens: 101u Series, 115cpu Series 115u, 6es5-980-0ae11, Siemens Simatic S5-101u, S7-400, 6es5 980-0ae11, 6es7 971-0ba00, Plc Modicon: 60-0515-000, 984 Series, 984-351, 984-380, 984-381, 984-385, 984-455 984-480 984 - 485, 984-680, 984-780, 984-785, 985-685 Series, B984 Series, B984-100 B984-101 B984-200 Series, C996 Series, M984 Series, Micro 984 Series, Nice Battery, Fta2, 2ah, For Cells Nice Ft210, Ft210b Transmitters, 210 Series Automation, Scale 7949002 Opal, Balance Tefal Ts-cy9894, Rowenta Ts-cy9894, Hq Li6a/1800, Hager Ek529

The Saft LS14500 battery is well-suited for specific applications due to its high energy density, long shelf life, and excellent performance in extreme temperatures. Here are a few reasons why the Saft LS14500 battery is a good choice for specific applications:

  1. High energy density: The Saft LS14500 battery has a high energy density of 950 Wh/l, meaning it can deliver much power in a relatively small package. This makes it ideal for applications where space is limited but much power is needed.

  2. Long shelf life: The Saft LS14500 battery has a shelf life of up to 10 years, which means it can be stored for long periods without losing its charge. This makes it ideal for applications where the battery may not be used for extended periods, such as in emergency backup systems or remote sensors.

  3. Extreme temperature performance: The Saft LS14500 battery is designed to operate in extreme temperatures ranging from -60°C to +85°C. This makes it ideal for applications that expose the battery to high or low temperatures, such as outdoor sensors, industrial automation equipment, and military equipment.

  4. Safety and reliability: The Saft LS14500 battery is designed to be highly reliable and safe, with features such as an airtight glass-to-metal seal and a built-in safety vent to release gas in the event of overheating or overcharging. This makes it ideal for applications where safety is a top priority, such as medical equipment and security systems.

Overall, the Saft LS14500 battery is a high-quality, long-lasting battery well-suited for various demanding applications. Its high energy density, long shelf life, and excellent performance in extreme temperatures make it a popular choice for many industrial, medical, and military applications.
