Saft Ni-Cd LE Range Information Range:- Saft LE Block Battery Range Capacity Steps:- 58 Performance:- low rate discharge over long periods between 1 and 100 hrs Applications:- Power back-up applications Specifications
SBLE 1150
Crosswise Connection
1150Ah
410
195
Length per block [mm] for 2 cells: N/A
Length per block [mm] for 3 cells: N/A
Length per block [mm] for 4 cells: N/A
Length per block [mm] for 5 cells: N/A
Length per block [mm] for 6 cells: N/A
Approx Weight per cell ( kg ): 48.6
Approx electrolyte volume between level marks ( cm³ ): 3050
Electrolyte per cell (Solid) ( kg ): 0.08
Electrolyte per cell (Liquid) ( L ): 4.18
Internal ( mOhm ): 12.9
Cell connection bolt per pole: 0.14
Cell connection bolt per pole: 5 x M 10
Ni-Cd Block battery range – Proven back-up performance and reliability for industrial applications. Performance optimized for each application according to plate thickness. NiCd Saft batteries have Thicker plates, Higher energy and have a Low cost per Amp at low ratesPlease see product description below for more information and the attachment tabs for specifications
Description

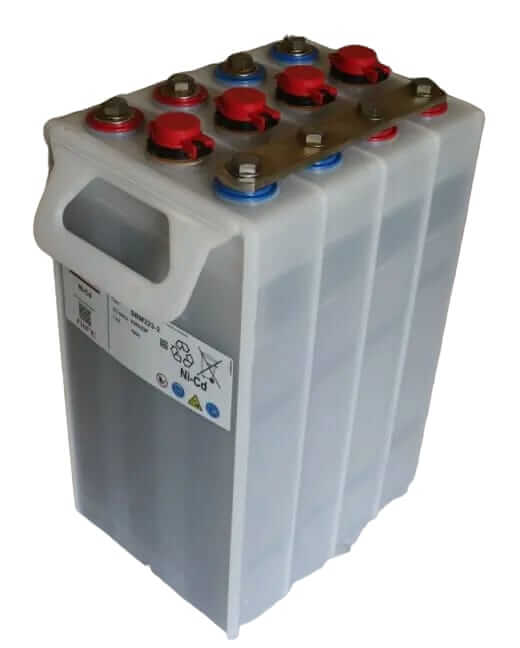

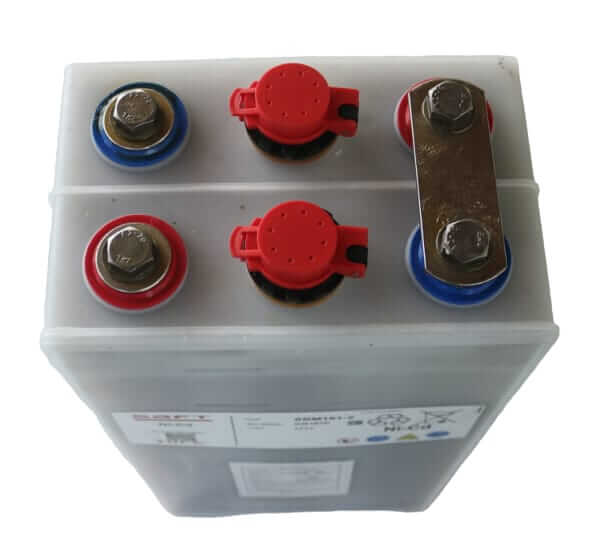

Introducing the Saft SBLE 1150 - a robust, rechargeable 1150Ah Ni-Cd Block Battery. This powerhouse is part of the esteemed Saft LE Block Battery Range, known for their consistent and reliable performance in power back-up applications.
This battery is designed for low rate discharge over long periods, between 1 and 100 hours, making it ideal for applications that require sustained power supply. The SBLE 1150 is designed with a Crosswise Connection, ensuring a reliable and stable connection for optimal performance.
The compact design of the SBLE 1150 makes it a convenient choice for various setups. With a height of 410mm, a width of 195mm, and a length per block of 378mm for a single cell, this battery is designed to fit seamlessly into your power back-up systems. Despite its compact size, the SBLE 1150 boasts a substantial weight of approximately 48.6kg per cell, indicating its solid and durable build.
The SBLE 1150 comes with an electrolyte volume between level marks of 3050 cm³. It contains 0.08kg of solid electrolyte per cell and 4.18L of liquid electrolyte per cell. The internal resistance is 12.9 mOhm, ensuring minimal energy loss during operation. The cell connection bolt per pole is 5 x M 10, ensuring a secure and efficient connection.
As a part of the Saft's Ni-Cd Block battery range, the SBLE 1150 offers proven back-up performance and reliability for industrial applications. Its performance is optimized for each application according to plate thickness. Saft's NiCd batteries are known for their thicker plates, higher energy, and low cost per Amp at low rates, making them a cost-effective choice for your power back-up needs.
Please refer to the product attachments for more detailed specifications on the SBLE 1150. Trust in the Saft SBLE 1150 to deliver reliable and consistent power back-up for your industrial applications.
