Saft Ni-Cd LE Range Information Range:- Saft LE Block Battery Range Capacity Steps:- 58 Performance:- low rate discharge over long periods between 1 and 100 hrs Applications:- Power back-up applications Specifications
SBLE 1300
Crosswise Connection
1300Ah
410
195
Length per block [mm] for 2 cells: N/A
Length per block [mm] for 3 cells: N/A
Length per block [mm] for 4 cells: N/A
Length per block [mm] for 5 cells: N/A
Length per block [mm] for 6 cells: N/A
Approx Weight per cell ( kg ): 54.8
Approx electrolyte volume between level marks ( cm³ ): 3360
Electrolyte per cell (Solid) ( kg ): 0.08
Electrolyte per cell (Liquid) ( L ): 4.54
Internal ( mOhm ): 14
Cell connection bolt per pole: 0.13
Cell connection bolt per pole: 5 x M 10
Ni-Cd Block battery range – Proven back-up performance and reliability for industrial applications. Performance optimized for each application according to plate thickness. NiCd Saft batteries have Thicker plates, Higher energy and have a Low cost per Amp at low ratesPlease see product description below for more information and the attachment tabs for specifications
Description

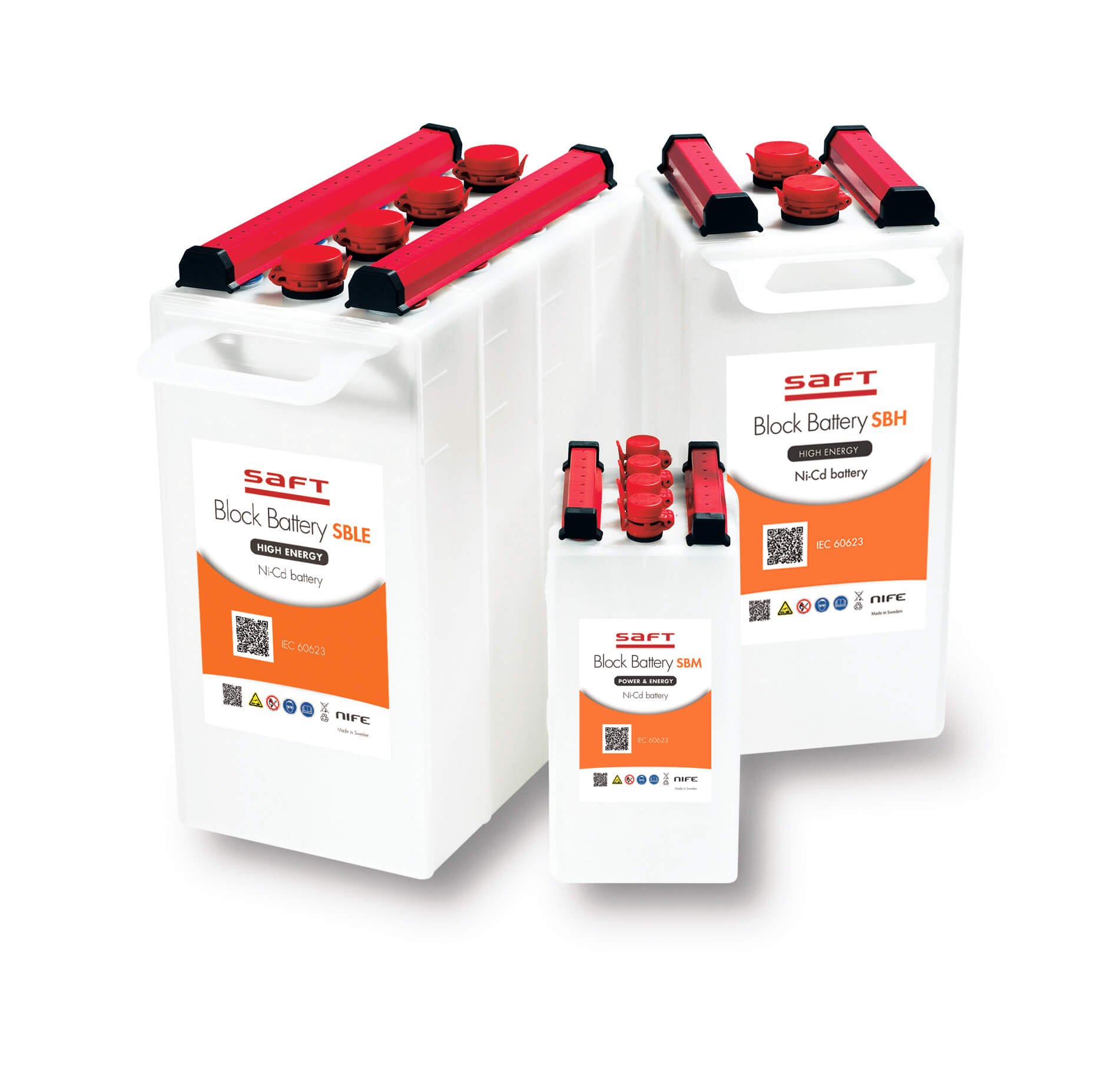

Introducing the Saft SBLE 1300, a rechargeable 1300Ah Ni-Cd block battery from the highly reputable Saft brand. This impressive battery is part of the SBLE ENERGY nickel battery range, specifically the L type product range.
The Saft SBLE 1300 falls under the Saft LE Block Battery Range, which is renowned for its superior performance. It's designed for low-rate discharge over long periods between 1 and 100 hours, making it an ideal choice for power back-up applications.
The item number for this product is SBLE 1300, and it comes with a crosswise connection type for easy installation and use. The battery has a height of 410mm (including the IP2X terminal cover), a width of 195mm, and a length per block of 413mm for 1 cell.
The Saft SBLE 1300 also features an approximate weight per cell of 54.8 kg, with an electrolyte volume between level marks of 3360 cm³. The electrolyte per cell is 0.08 kg for solid and 4.54 L for liquid. It has an internal resistance of 14 mOhm and a cell connection bolt per pole of 0.13, featuring a 5 x M10 bolt size.
The Saft Ni-Cd LE Range is specifically designed to provide proven back-up performance and reliability for industrial applications. Each battery's performance is optimized according to plate thickness.
Saft NiCd batteries are known for their thicker plates, higher energy, and low cost per Amp at low rates, offering exceptional value for your money.
For more information and specifications, please refer to the product description and attachment tabs. Trust the Saft SBLE 1300 for reliable, long-lasting energy storage.
