Saft Ni-Cd LE Range Information Range:- Saft LE Block Battery Range Capacity Steps:- 58 Performance:- low rate discharge over long periods between 1 and 100 hrs Applications:- Power back-up applications Specifications
SBLE 1560
Crosswise Connection
1560Ah
410
195
Length per block [mm] for 2 cells: N/A
Length per block [mm] for 3 cells: N/A
Length per block [mm] for 4 cells: N/A
Length per block [mm] for 5 cells: N/A
Length per block [mm] for 6 cells: N/A
Approx Weight per cell ( kg ): 66.2
Approx electrolyte volume between level marks ( cm³ ): 4080
Electrolyte per cell (Solid) ( kg ): 0.08
Electrolyte per cell (Liquid) ( L ): 5.51
Internal ( mOhm ): 17
Cell connection bolt per pole: 0.11
Cell connection bolt per pole: 6 x M 10
Ni-Cd Block battery range – Proven back-up performance and reliability for industrial applications. Performance optimized for each application according to plate thickness. NiCd Saft batteries have Thicker plates, Higher energy and have a Low cost per Amp at low ratesPlease see product description below for more information and the attachment tabs for specifications
Description

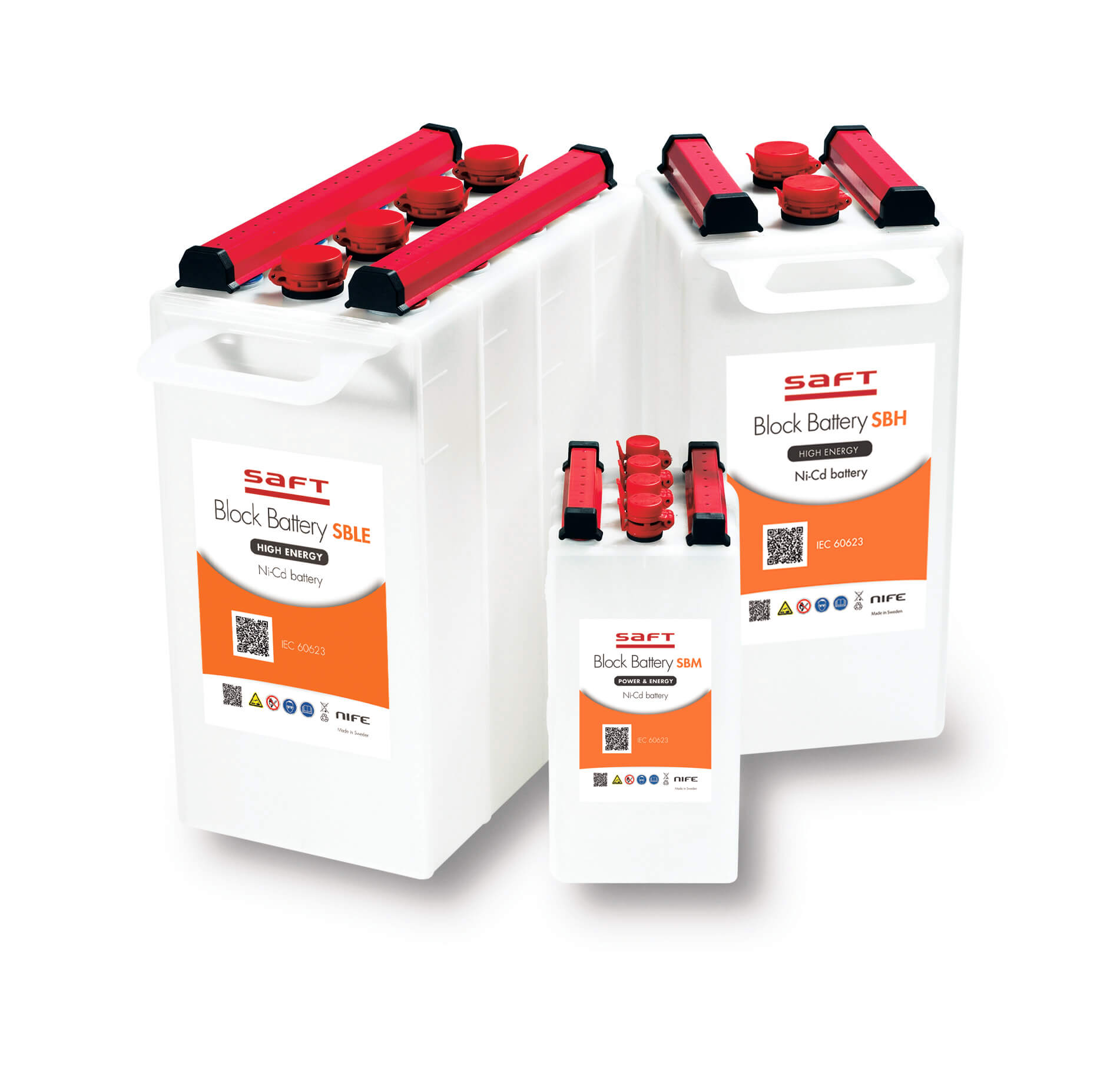

Experience reliable and proven back-up performance with the Saft SBLE 1560, a rechargeable Ni-Cd block battery from the recognized Saft brand. This product is part of Saft's Ni-Cd LE block battery range, which is designed to deliver optimized performance for each application according to plate thickness.
The Saft SBLE 1560 boasts a capacity of 1560Ah and offers low-rate discharge over extended periods between 1 and 100 hours, making it an ideal choice for power back-up applications. It features a crosswise connection type and measures 410mm in height (including the IP2X terminal cover), 195mm in width, and 499mm in length per block for one cell.
This Ni-Cd block battery has an approximate weight per cell of 66.2kg and an internal resistance of 17mOhm. It holds an electrolyte volume of 4080cm³ between level marks, with 0.08kg of solid electrolyte per cell and 5.51L of liquid electrolyte per cell. The battery is equipped with 6 M10 bolts for cell connection per pole.
The Saft SBLE 1560 stands out in the Ni-Cd block battery range for its thicker plates, higher energy, and low cost per Amp at low rates. It is an excellent choice for anyone in need of a durable and high-performing rechargeable battery, offering both power and reliability for a variety of industrial applications.
For more information, please refer to the attached specifications.
