Saft Ni-Cd LE Range Information Range:- Saft LE Block Battery Range Capacity Steps:- 58 Performance:- low rate discharge over long periods between 1 and 100 hrs Applications:- Power back-up applications Specifications
SBLE 1690
Crosswise Connection
1690Ah
410
195
Length per block [mm] for 2 cells: N/A
Length per block [mm] for 3 cells: N/A
Length per block [mm] for 4 cells: N/A
Length per block [mm] for 5 cells: N/A
Length per block [mm] for 6 cells: N/A
Approx Weight per cell ( kg ): 69.8
Approx electrolyte volume between level marks ( cm³ ): 4290
Electrolyte per cell (Solid) ( kg ): 0.08
Electrolyte per cell (Liquid) ( L ): 5.77
Internal ( mOhm ): 17.8
Cell connection bolt per pole: 0.1
Cell connection bolt per pole: 6 x M 10
Ni-Cd Block battery range – Proven back-up performance and reliability for industrial applications. Performance optimized for each application according to plate thickness. NiCd Saft batteries have Thicker plates, Higher energy and have a Low cost per Amp at low ratesPlease see product description below for more information and the attachment tabs for specifications
Description

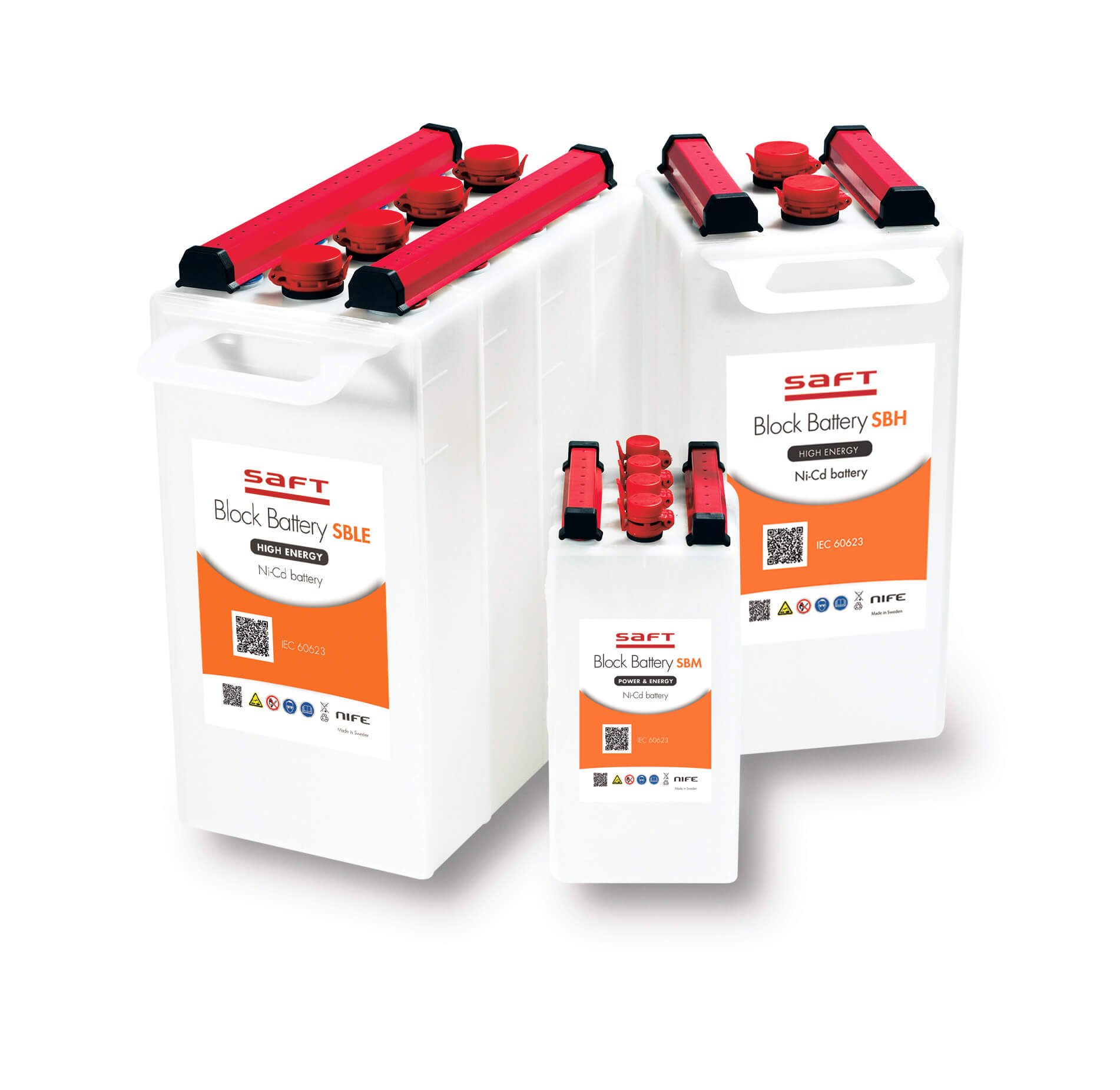

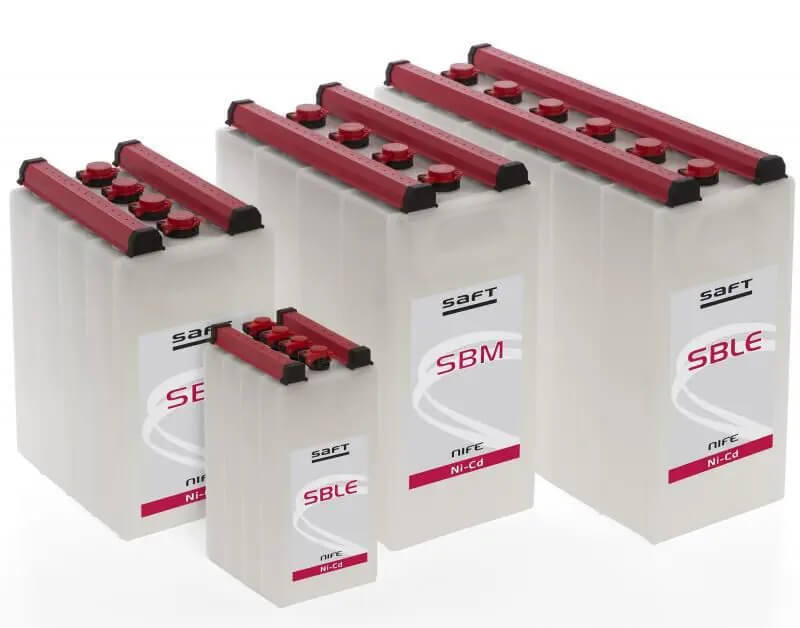

The Saft SBLE 1690 is a high-capacity, rechargeable 1690Ah Ni-Cd block battery from the renowned Saft brand. This product is part of the SBLE ENERGY nickel battery range and is specifically designed under the L type category. It is a robust and reliable power solution, designed for low rate discharge over long periods between 1 and 100 hours.
The SBLE 1690 battery is specifically engineered for power back-up applications, ensuring your devices stay powered in any situation. With the item number SBLE 1690, it features a crosswise connection type and an impressive capacity of 1690Ah.
The physical characteristics of this battery include a height of 410mm with the IP2X terminal cover, a width of 195mm, and a length per block for one cell of 523mm. It has an approximate weight of 69.8kg per cell, ensuring stability and durability.
In terms of its internal composition, the battery contains an electrolyte volume between level marks of 4290 cm³. The electrolyte per cell weighs 0.08kg in solid form and 5.77L in liquid form. The internal resistance is 17.8 mOhm, maintaining a steady current flow. The connection bolt per pole is 0.1, and there are 6 x M 10 bolts per pole.
The Saft Ni-Cd LE Range is noted for its proven back-up performance and reliability in industrial applications. The performance is optimized for each application according to plate thickness. Saft Ni-Cd batteries are known for their thicker plates, higher energy, and low cost per Amp at low rates.
For more information and detailed specifications, please refer to the product description and attachment tabs. Make your power back-up more reliable with the Saft SBLE 1690 rechargeable Ni-Cd block battery.
