Saft Ni-Cd LE Range Information Range:- Saft LE Block Battery Range Capacity Steps:- 58 Performance:- low rate discharge over long periods between 1 and 100 hrs Applications:- Power back-up applications Specifications
SBLE 300
Normal Connection
300Ah
406
195
Length per block [mm] for 2 cells: 229
Length per block [mm] for 3 cells: 337
Length per block [mm] for 4 cells: N/A
Length per block [mm] for 5 cells: N/A
Length per block [mm] for 6 cells: N/A
Approx Weight per cell ( kg ): 14.8
Approx electrolyte volume between level marks ( cm³ ): 890
Electrolyte per cell (Solid) ( kg ): 0.08
Electrolyte per cell (Liquid) ( L ): 1.26
Internal ( mOhm ): 3.9
Cell connection bolt per pole: 0.55
Cell connection bolt per pole: 2 x M 10
Ni-Cd Block battery range – Proven back-up performance and reliability for industrial applications. Performance optimized for each application according to plate thickness. NiCd Saft batteries have Thicker plates, Higher energy and have a Low cost per Amp at low ratesPlease see product description below for more information and the attachment tabs for specifications
Description

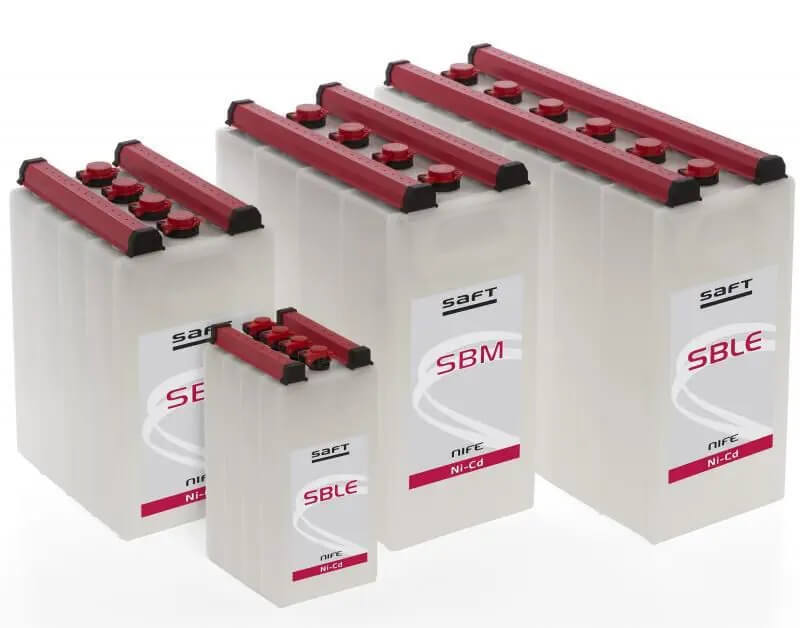

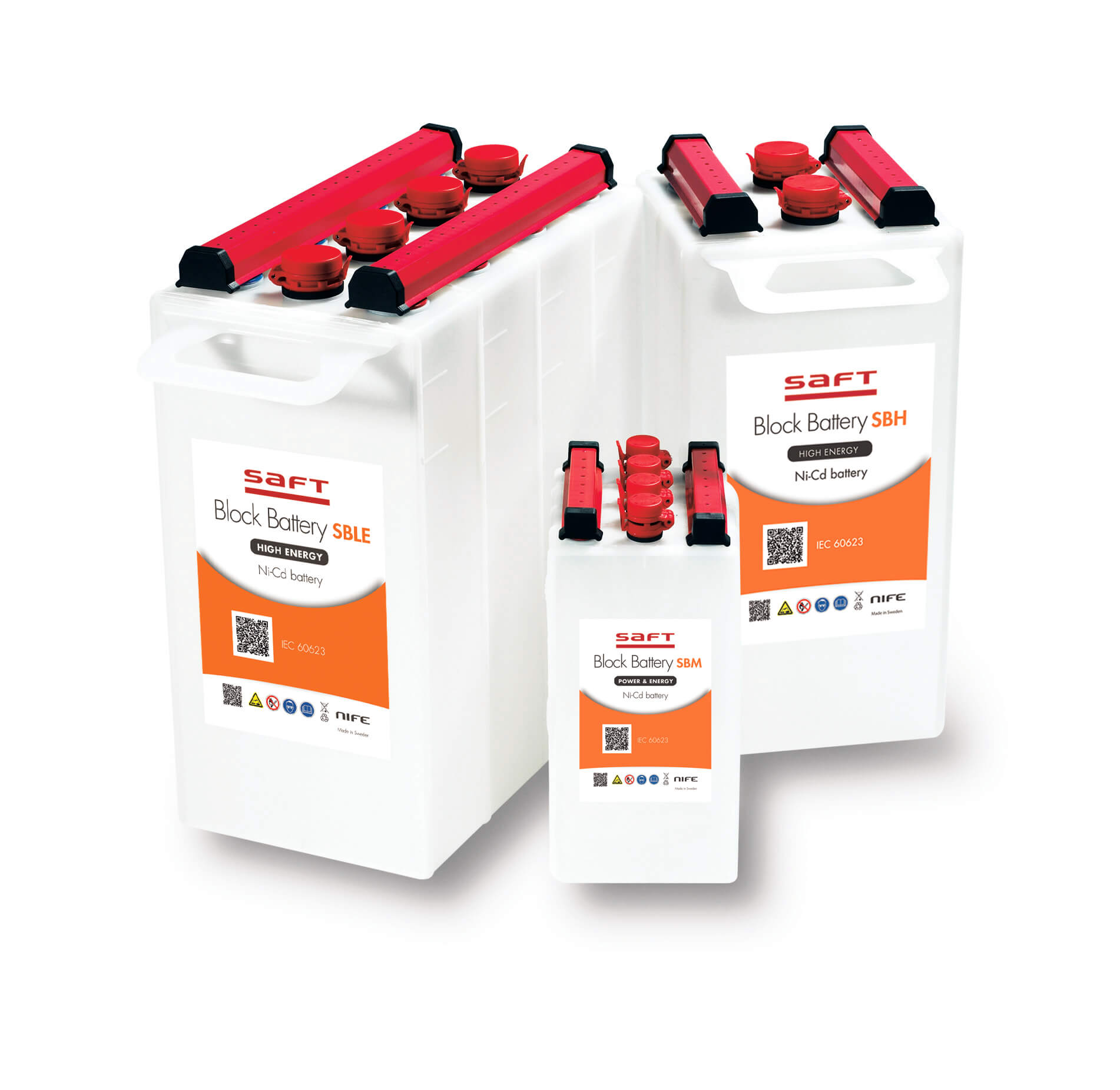

The Saft SBLE 300 is a robust and reliable rechargeable 300Ah Ni-Cd block battery from the distinguished Saft brand. As a member of the Saft LE Block Battery Range, it offers high performance and excellent low rate discharge over long periods between 1 and 100 hours, making it an ideal choice for power back-up applications.
The SBLE 300 comes with a normal connection type and boasts a substantial capacity of 300Ah. It measures 406mm in height, inclusive of the IP2X terminal cover, and 195mm in width. Length per block varies, with 229mm for 2 cells and 337mm for 3 cells. The battery is designed for solid performance with an approximate weight per cell of 14.8 kg.
This Ni-Cd block battery range provides proven back-up performance and reliability for various industrial applications. The SBLE 300 is optimized for each application according to plate thickness, ensuring you receive the best performance for your specific needs. Furthermore, NiCd Saft batteries are known for their thicker plates, higher energy, and low cost per Amp at low rates.
The SBLE 300 also features an internal resistance of 3.9 mOhm and a cell connection bolt per pole of 0.55 and 2 x M 10. The battery carries an approximate electrolyte volume between level marks of 890 cm³, with electrolyte per cell (solid) weighing 0.08 kg and electrolyte per cell (liquid) measuring 1.26 L.
Choose the Saft SBLE 300 for its exceptional quality, performance, and durability. Trust Saft for your power back-up needs.
