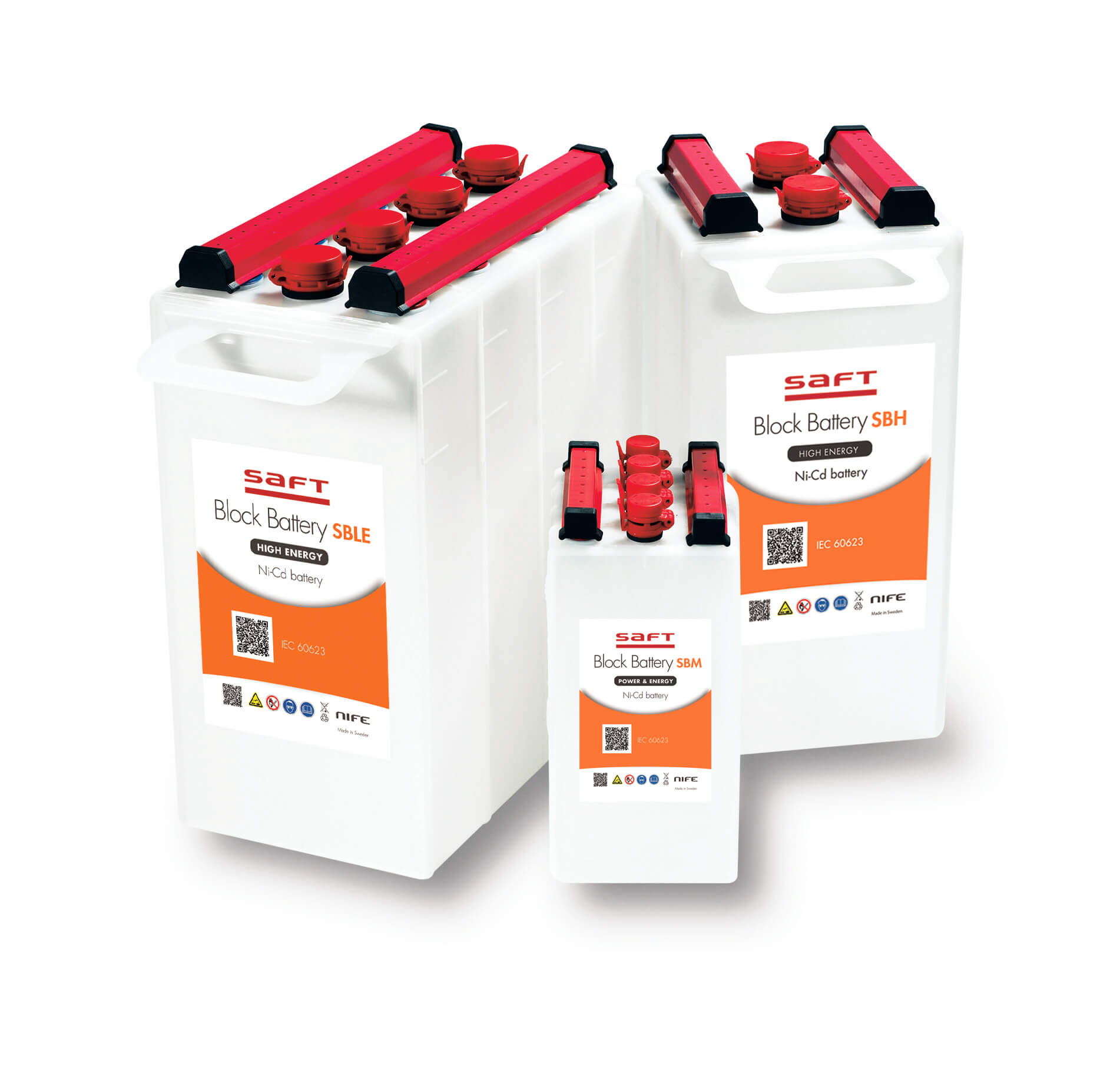

Saft SBLE 650, rechargeable 650 Ni-Cd block battery
Roll over image to zoom in Click on image to zoom
Saft SBLE 650, rechargeable 650 Ni-Cd block batterySaft SBLE 650, rechargeable 650Ah, Ni-Cd block battery

Saft SBLE 650, rechargeable 650Ah, Ni-Cd block battery

Saft
Price:
$0.00 CAD

Shipping calculated at checkout

Contact Us

---------------------------------------------------------------------------------------
This product is a special order product. Prices vary due to exchange rates and material costs. Request a quote for current pricing and shipping. Note: some products do have minimum order quantities.
---------------------------------------------------------------------------------------

There is a $25.00 Minimum order amount please add more items to your cart if under this amount.

Product Attachments

Saft Ni-Cd Block battery range data
Saft Ni-Cd Block battery range data(3.83 MB)
Saft SBLE Info
Saft SBLE Info(637.92 KB)

Specifications

Saft Ni-Cd LE Range Information
Range:- Saft LE Block Battery Range
Capacity Steps:- 58
Performance:- low rate discharge over long periods between 1 and 100 hrs
Applications:- Power back-up applications
Specifications
  • SBLE 650
  • Crosswise Connection
  • 650Ah
  • 410
  • 195

  • Length per block [mm] for 2 cells: N/A
  • Length per block [mm] for 3 cells: N/A
  • Length per block [mm] for 4 cells: N/A
  • Length per block [mm] for 5 cells: N/A
  • Length per block [mm] for 6 cells: N/A
  • Approx Weight per cell ( kg ): 27.6
  • Approx  electrolyte volume between level marks ( cm³ ): 1720
  • Electrolyte per cell  (Solid)  ( kg ): 0.08
  • Electrolyte per cell (Liquid) ( L ): 2.37
  • Internal ( mOhm ): 7.3
  • Cell connection bolt per pole: 0.25
  • Cell connection bolt per pole: 3 x M 10
Ni-Cd Block battery range – Proven back-up performance and reliability for industrial applications.  Performance optimized for each application according to plate thickness.
NiCd Saft batteries have Thicker plates, Higher energy and have a Low cost per Amp at low rates
Please see product description below for more information and the attachment tabs for specifications

Description

Introducing the Saft SBLE 650, a top-of-the-line rechargeable Ni-Cd block battery from Saft's renowned SBLE ENERGY nickel battery range. This L type product is part of the Saft LE Block Battery Range and is designed to deliver reliable performance for your power back-up applications.


The Saft SBLE 650 boasts a substantial capacity of 650Ah, perfect for long periods of low rate discharge between 1 and 100 hrs. This battery is built with a crosswise connection type, ensuring a secure and effective connection for optimal performance.


The SBLE 650 features a height of 410mm, including the IP2X terminal cover, with a width of 195mm and a length of 219mm per block for 1 cell. Despite its generous capacity, this battery maintains a manageable weight per cell of approximately 27.6kg.


The battery comes with an electrolyte volume between level marks of 1720cm³, with electrolyte per cell solid of 0.08kg and electrolyte per cell liquid of 2.37L. It also showcases an internal resistance of 7.3 mOhm and a cell connection bolt per pole of 0.25 and 3 x M 10, further enhancing its performance and efficiency.


Saft's Ni-Cd Block battery range is known for its proven back-up performance and reliability in industrial applications. The performance is optimized for each application according to plate thickness. Saft batteries are designed with thicker plates to provide higher energy at lower costs per Amp at low rates.


Please refer to the attachment tabs for more specifications. Trust Saft SBLE 650 for your power back-up needs, and experience the difference in performance and reliability.
