Saft Ni-Cd LE Range Information Range:- Saft LE Block Battery Range Capacity Steps:- 58 Performance:- low rate discharge over long periods between 1 and 100 hrs Applications:- Power back-up applications Specifications
SBLE 890
Crosswise Connection
890Ah
410
195
Length per block [mm] for 2 cells: N/A
Length per block [mm] for 3 cells: N/A
Length per block [mm] for 4 cells: N/A
Length per block [mm] for 5 cells: N/A
Length per block [mm] for 6 cells: N/A
Approx Weight per cell ( kg ): 37.2
Approx electrolyte volume between level marks ( cm³ ): 2330
Electrolyte per cell (Solid) ( kg ): 0.08
Electrolyte per cell (Liquid) ( L ): 3.18
Internal ( mOhm ): 9.8
Cell connection bolt per pole: 0.19
Cell connection bolt per pole: 4 x M 10
Ni-Cd Block battery range – Proven back-up performance and reliability for industrial applications. Performance optimized for each application according to plate thickness. NiCd Saft batteries have Thicker plates, Higher energy and have a Low cost per Amp at low ratesPlease see product description below for more information and the attachment tabs for specifications
Description

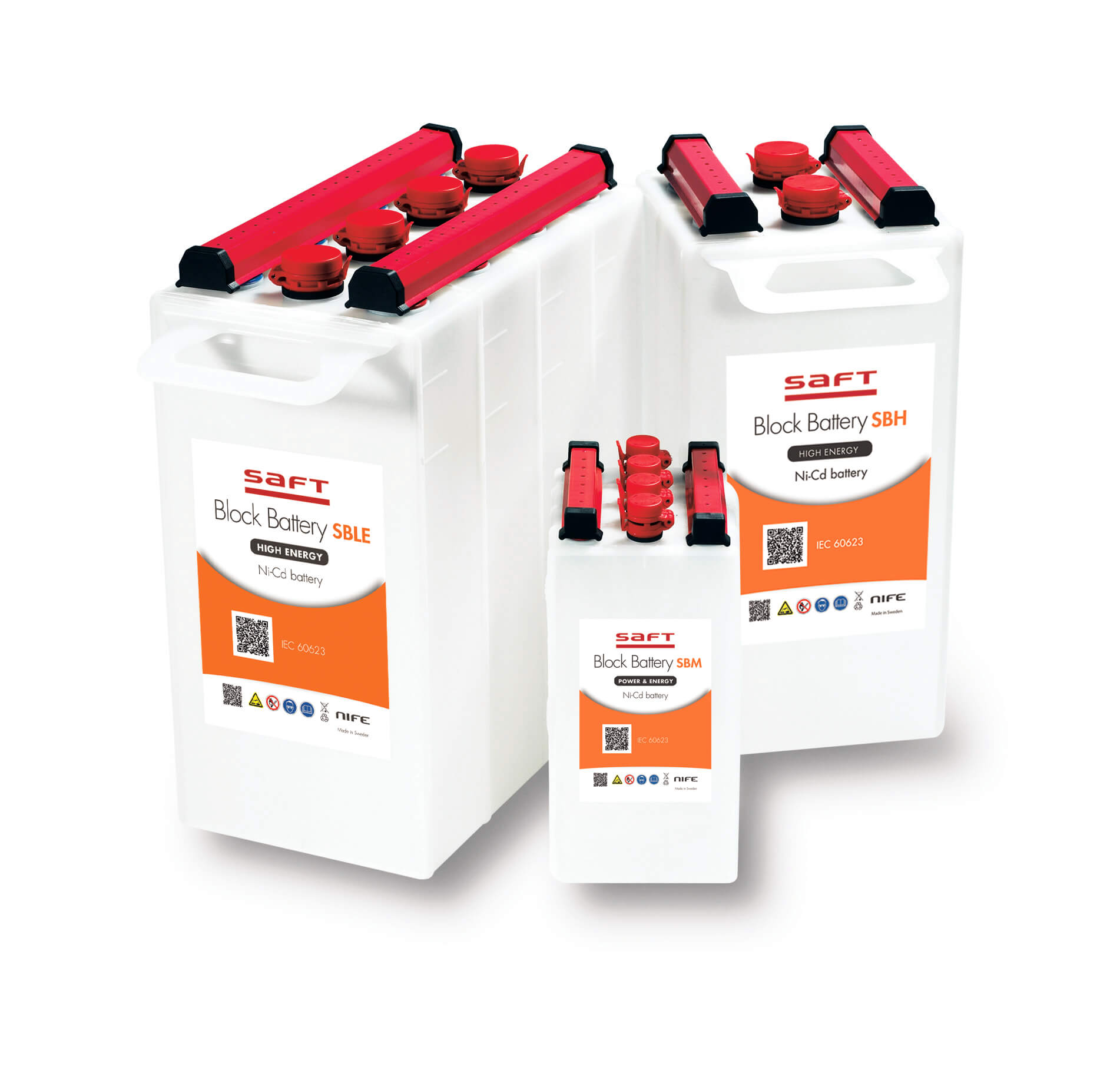

Experience reliable and high-quality power backup with the Saft SBLE 890, a rechargeable 890Ah Ni-Cd block battery. This product is part of the renowned Saft LE Block Battery Range, promising unwavering performance and durability.
With a capacity step of 58, this battery is designed for low rate discharge over long periods, between 1 and 100 hours. This makes it perfect for power back-up applications, ensuring your operations never come to a halt due to power issues.
The SBLE 890 features a crosswise connection type, and is compactly designed with a height of 410mm (including the IP2X terminal cover), a width of 195mm, and a length per block for 1 cell of 292mm. Despite its compact size, it has a substantial weight of 37.2kg per cell, indicating its robust build and quality.
This battery also boasts an impressive electrolyte volume of 2330cm³ between level marks, with 0.08kg of solid electrolyte per cell and 3.18L of liquid electrolyte per cell. Its internal resistance is 9.8mOhm, and it has a cell connection bolt per pole of 4 x M 10.
The Saft SBLE 890 is part of the Ni-Cd Block battery range, known for its proven back-up performance and reliability in industrial applications. These batteries are performance-optimized for each application according to plate thickness. Saft batteries are known for their thicker plates, higher energy, and low cost per Amp at low rates, making them a cost-effective choice for your power backup needs.
For more detailed information and specifications, please refer to the product description and attachment tabs. Invest in the Saft SBLE 890 battery and experience the difference in power, reliability, and performance.
