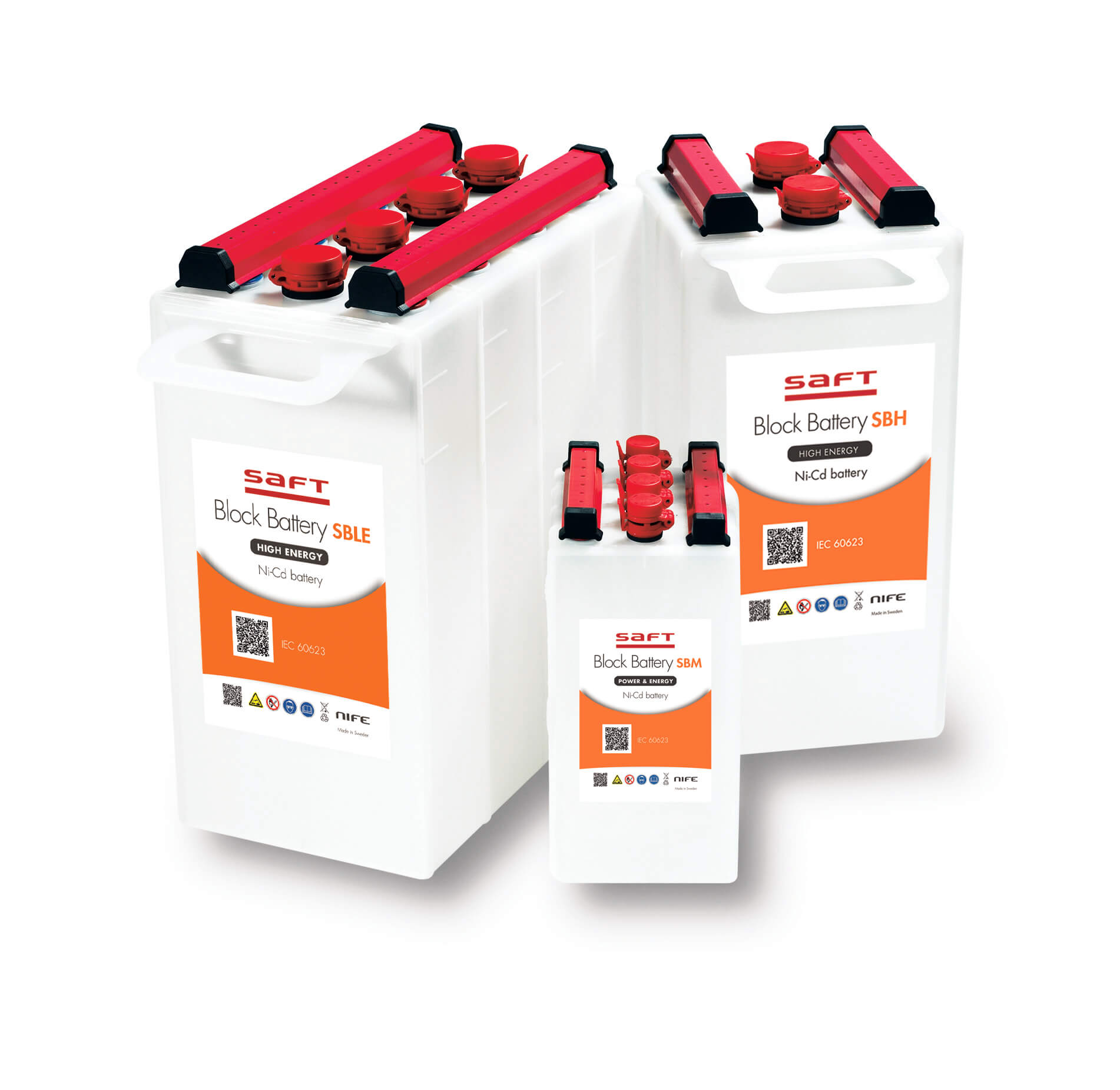

Saft SBLE 980, rechargeable 980Ah, Ni-Cd block battery

SaftSKU: SBLE 980

Price:
Sale price$0.00 CAD

Shipping calculated at checkout

---------------------------------------------------------------------------------------
This product is a special order product. Prices vary due to exchange rates and material costs. Request a quote for current pricing and shipping. Note: some products do have minimum order quantities.
---------------------------------------------------------------------------------------

Product Attachments

Specifications

Saft Ni-Cd LE Range Information

Range:- Saft LE Block Battery Range
Capacity Steps:- 58
Performance:- low rate discharge over long periods between 1 and 100 hrs

Applications:- Power back-up applications

Specifications
  • SBLE 980
  • Crosswise Connection
  • 980Ah
  • 410
  • 195

  • Length per block [mm] for 2 cells: N/A
  • Length per block [mm] for 3 cells: N/A
  • Length per block [mm] for 4 cells: N/A
  • Length per block [mm] for 5 cells: N/A
  • Length per block [mm] for 6 cells: N/A
  • Approx Weight per cell ( kg ): 41
  • Approx  electrolyte volume between level marks ( cm³ ): 2550
  • Electrolyte per cell  (Solid)  ( kg ): 0.08
  • Electrolyte per cell (Liquid) ( L ): 3.47
  • Internal ( mOhm ): 10.7
  • Cell connection bolt per pole: 0.17
  • Cell connection bolt per pole: 4 x M 10

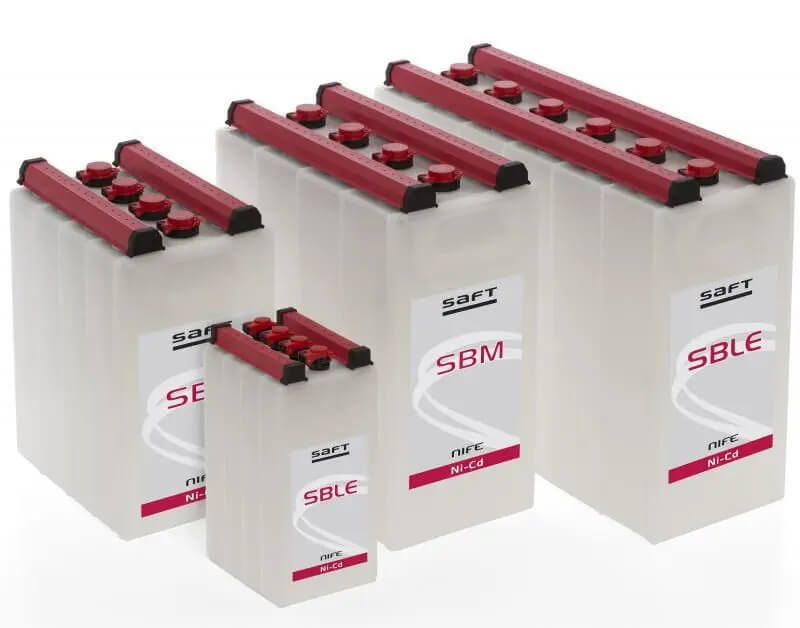

Ni-Cd Block battery range – Proven back-up performance and reliability for industrial applications.  Performance optimized for each application according to plate thickness.

NiCd Saft batteries have Thicker plates, Higher energy and have a Low cost per Amp at low rates
Please see product description below for more information and the attachment tabs for specifications

Description

Introducing the Saft SBLE 980, a premium rechargeable 980Ah Ni-Cd block battery from Saft's renowned LE Block Battery Range. This high-capacity battery is specifically designed to provide reliable, low-rate discharge over long periods between 1 and 100 hours, making it an ideal power back-up solution for a variety of industrial applications.


Crafted with superior quality in mind, the SBLE 980 boasts a crosswise connection type, providing optimal conductivity for efficient power usage. Measuring 410mm in height (including the IP2X terminal cover), 195mm in width, and 317mm in length per block for one cell, it has a compact design that allows for easy installation and maintenance.


The approximate weight per cell is 41kg, making it a sturdy and robust choice for demanding environments. The battery also features an internal resistance of 10.7 mOhm and a cell connection bolt per pole of 4 x M 10, ensuring a secure and stable connection for optimal performance.


In terms of capacity, the SBLE 980 is equipped with an electrolyte volume between level marks of 2550 cm³. It contains 0.08kg of solid electrolyte per cell and 3.47L of liquid electrolyte per cell, offering ample power storage for extended use.


The Saft SBLE 980 is part of the Ni-Cd Block battery range, known for its proven back-up performance and reliability in industrial applications. The performance of this battery range is optimized for each application according to plate thickness. Moreover, NiCd Saft batteries are renowned for having thicker plates, higher energy, and a low cost per Amp at low rates.


For more detailed information and specifications, please refer to the attached tabs. Purchase the Saft SBLE 980 today and experience the ultimate in dependable, long-lasting power back-up solutions.
